AWTF60SN Transmission 4-5-6 K2 Clutch Drum 4 Clutches 15 Spline Shaft Drum Clutch Assembly

Product Summary
The drum clutch assembly is a core torque transfer unit in modern automatics (especially planetary-based designs). Key points: Function – Houses stacked friction/steel plates activated hydraulically to lock planetary gearset elements. Critical Parts – Drum body, apply piston, seals, return springs, and splined hubs (input/output connections). Failure Modes Drum cracks : Stress fatigue near weld seams or splines. Seal leaks : Causes slow engagement (delayed shifts). Plate wear
Basic Properties
Brand Name: Volkswagen Passat
Model Number: 09G 09M 09K AWTF60SN
Trading Properties
Minimum Order Quantity: 1
Price: 0-1000
Payment Terms: T/T
Tags:

transmission torque converter

Automatic Transmission Parts

transmission clutch assembly
Product Description


The drum clutch assembly is a core torque transfer unit in modern automatics (especially planetary-based designs). Key points:

  1. Function – Houses stacked friction/steel plates activated hydraulically to lock planetary gearset elements.

  2. Critical Parts – Drum body, apply piston, seals, return springs, and splined hubs (input/output connections).

  3. Failure Modes

    • Drum cracks: Stress fatigue near weld seams or splines.

    • Seal leaks: Causes slow engagement (delayed shifts).

    • Plate wear: Glazing/burnt material leads to slippage (P0776 codes).

  4. Inspection – Check drum for scoring/ovalization; measure plate clearance (exceeding 1.5mm requires pack replacement).

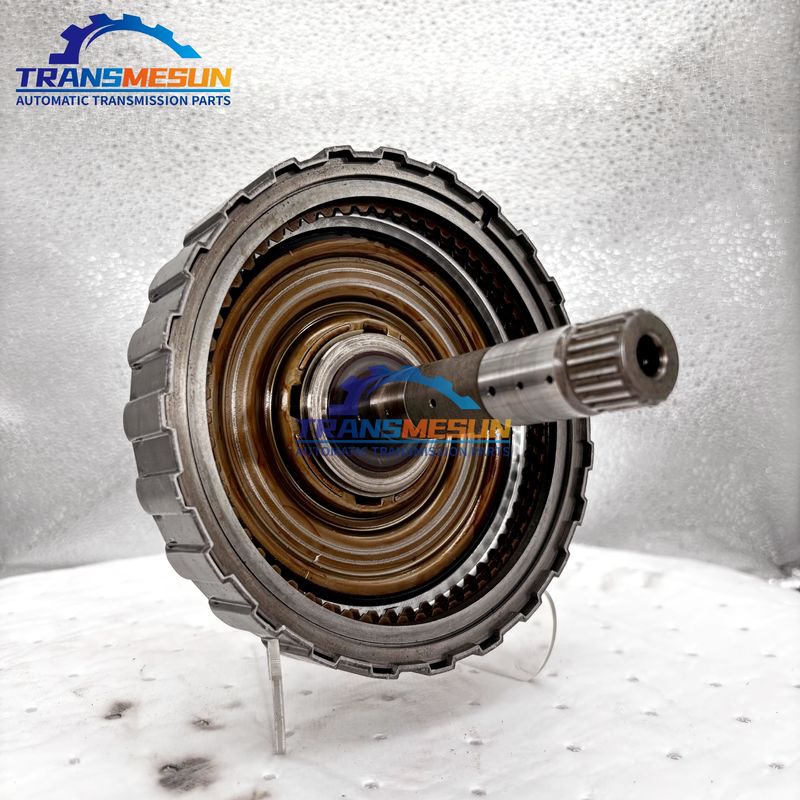

AWTF60SN Transmission 4-5-6 K2 Clutch Drum 4 Clutches 15 Spline Shaft Drum Clutch Assembly 0

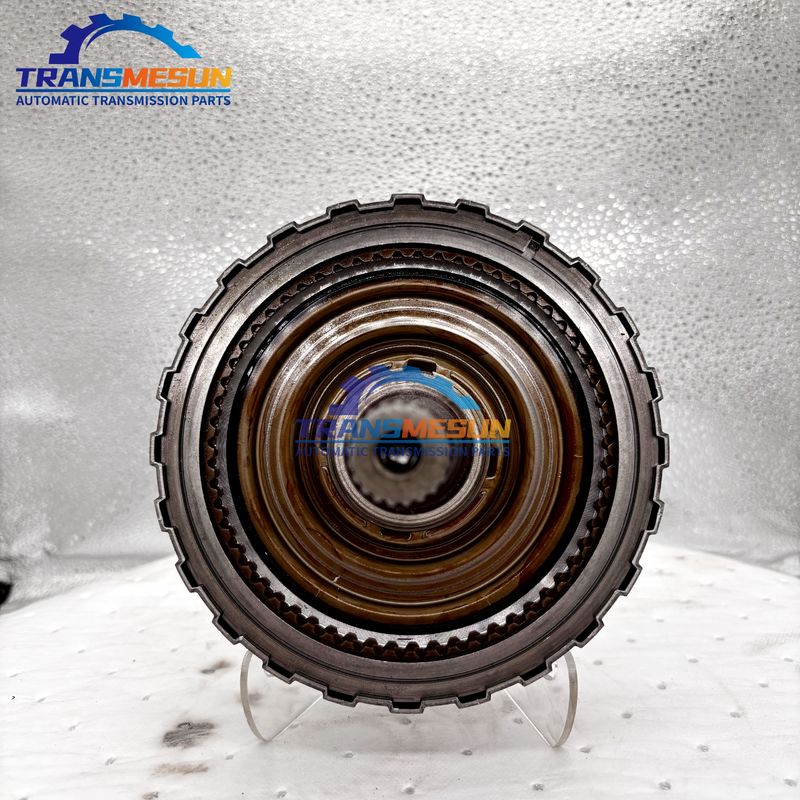

AWTF60SN Transmission 4-5-6 K2 Clutch Drum 4 Clutches 15 Spline Shaft Drum Clutch Assembly 1

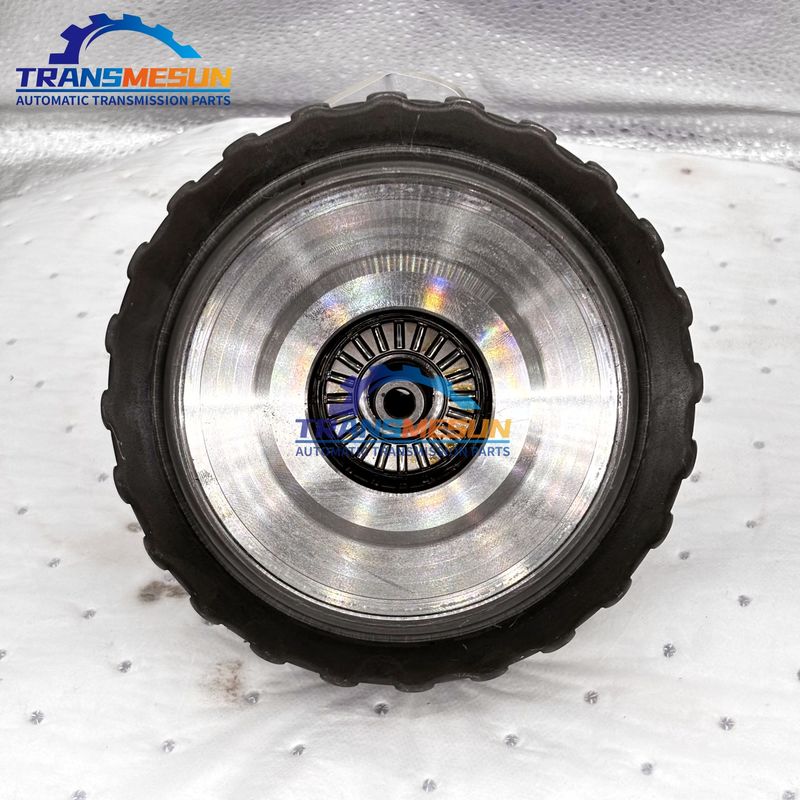

AWTF60SN Transmission 4-5-6 K2 Clutch Drum 4 Clutches 15 Spline Shaft Drum Clutch Assembly 2

































Product Details
Highlight:

4-5-6 K2 Clutch Drum

,

15 Spline Shaft K2 Clutch Drum
Year：: 2007-
MODEL：: 09G 09M 09K AWTF60SN
SIZE:: 15X15X15CM
Brand：: Volkswagen Passat
Item Weight:: 2.5kg
ＯＥＮＯ: /
Displacement:: 2.0T
Applicable Brand:: Volkswagen Passat; Touran; Magotan; Sagitar; Golf; CC. Skoda
