AC60F C1 Clutch Input Shaft Forward Gear Clutch Assembly Includes Clutch Disc

Product Summary
Function: Transmits torque in forward gears (1st-4th) via multi-plate clutch engagement in Nissan/Infiniti transverse 6-speeds. Key Components: Splined Input Shaft: Hardened steel with micro-polished bearing surfaces. Clutch Drum: Laser-welded aluminum with reinforced piston lugs (OEM 31706-JK00B ). Piston Assembly: Dual-lipped seals for high-pressure stability (60-80 psi apply). Failure Modes: Spline Wear: Causes clutch drag (delayed 1-2 shifts, P17F5 codes). Seal Extrusion:
Basic Properties
Brand Name: Toyota
Model Number: AC60E;AC60F
Trading Properties
Minimum Order Quantity: 1
Price: 0-1000
Payment Terms: T/T
Tags:

transmission torque converter

Automatic Transmission Parts

transmission clutch assembly
Product Description

      • Function: Transmits torque in forward gears (1st-4th) via multi-plate clutch engagement in Nissan/Infiniti transverse 6-speeds.

        Key Components:

        • Splined Input Shaft: Hardened steel with micro-polished bearing surfaces.

        • Clutch Drum: Laser-welded aluminum with reinforced piston lugs (OEM 31706-JK00B).

        • Piston Assembly: Dual-lipped seals for high-pressure stability (60-80 psi apply).

        Failure Modes:

        • Spline Wear: Causes clutch drag (delayed 1-2 shifts, P17F5 codes).

        • Seal Extrusion: Contaminated ATF (NS-3) degrades seals → pressure loss.

        • Drum Cracks: Thermal stress near weld seams (sudden no-drive condition).

        Critical Checks:

        1. Shaft endplay (<0.2mm).

        2. Drum runout (<0.08mm).

        Pro Tip: Replace both C1 clutch and torque converter if metal debris is present – debris migrates to TC lockup clutch.

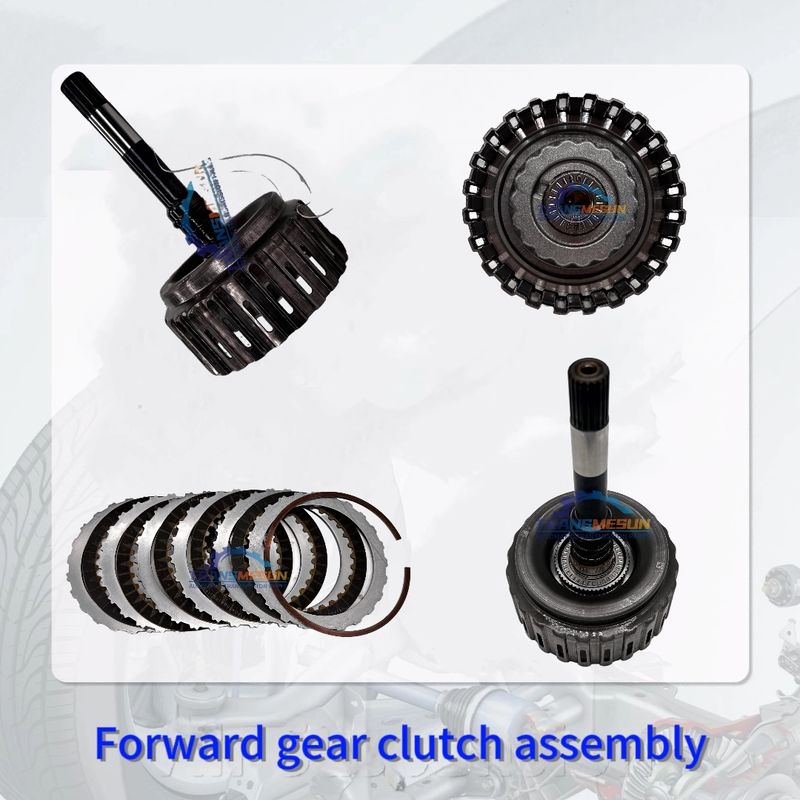

        • AC60F C1 Clutch Input Shaft Forward Gear Clutch Assembly Includes Clutch Disc 0

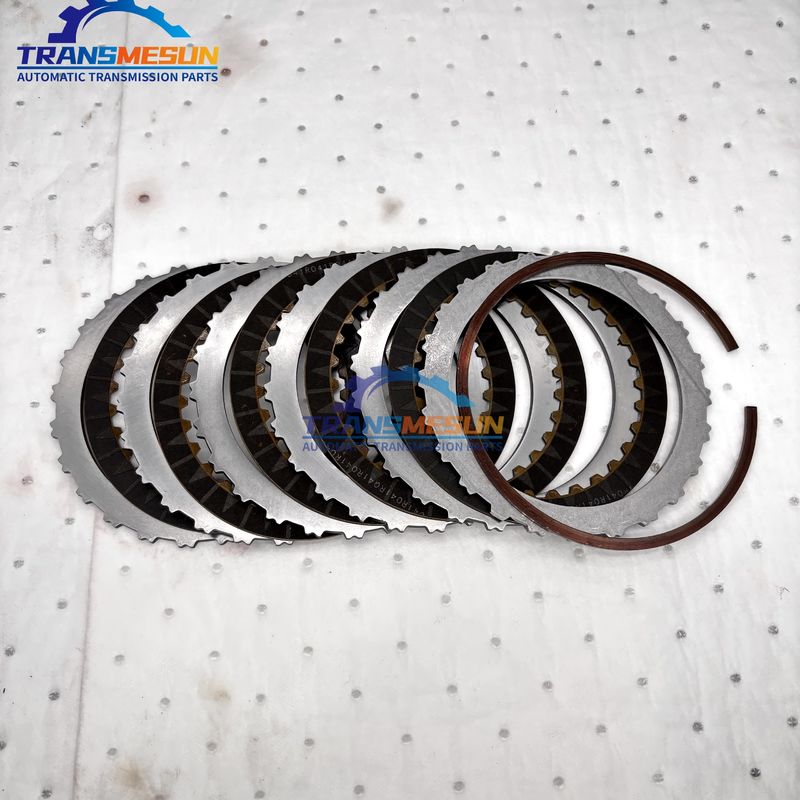

AC60F C1 Clutch Input Shaft Forward Gear Clutch Assembly Includes Clutch Disc 1

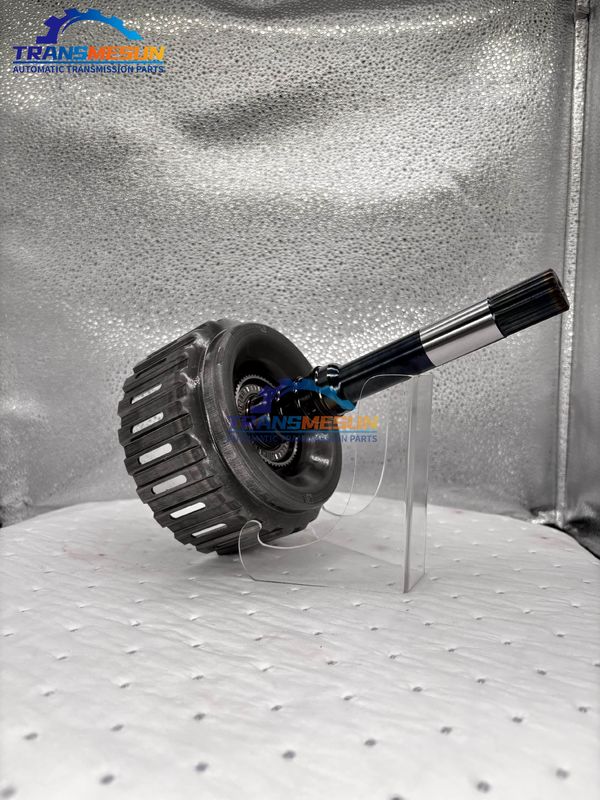

AC60F C1 Clutch Input Shaft Forward Gear Clutch Assembly Includes Clutch Disc 2

Product Details
Highlight:

C1 clutch input shaft forward gear

,

AC60F Clutch Disc
Year：: 2015-
MODEL：: AC60E;AC60F
SIZE:: 35X20X20CM
Brand：: Toyota
Item Weight:: 4kg
ＯＥＮＯ: 3560104020；3560104040
Displacement:: 2.8T;3.0T;3.5L;4.0L
Applicable Brand:: Fortuner；Fortuner (Suv)；Grnva/Hiace/Mjsty；Hiace；Hiace/Regiusace；Hilux
