Rear Cover Of The K114 CVT Transmission Housing With Five Fixing Holes For The 2019 Model Toyota C-HR 2.0L CVT Transmission.

Basic Properties
Brand Name: Toyota
Model Number: K114
Trading Properties
Minimum Order Quantity: 1
Price: 0-1000
Standard Packaging: Wooden box or cardboard box
Delivery Time: 5-8 work day
Payment Terms: T/T
Product Summary
Function: Seals the CVT assembly while supporting critical components (secondary pulley shaft, differential bearings). Key Features: Material: High-strength aluminum alloy (ADC12) with precision CNC-machined bearing bores Integrated Components:• Differential bearing races (must match OEM hardness)• ...

Product Details

Highlight:

K114 CVT Transmission Housing

,

fixing holes CVT Transmission Housing

,

Rear Cover CVT Transmission Housing

Year:: 2018-2022
MODEL:: K114
SIZE:: 38X30X20CM
Brand:: Toyota
Item Weight:: 9kg
OENO: K114100301K;K114HG5K
Displacement:: 2.0L
Applicable Brand:: C-HR
Product Description
        • Function: Seals the CVT assembly while supporting critical components (secondary pulley shaft, differential bearings).

          Key Features:

          • Material: High-strength aluminum alloy (ADC12) with precision CNC-machined bearing bores

          • Integrated Components:
            • Differential bearing races (must match OEM hardness)
            • Fluid return galleries (prevents oil starvation)
            • Speed sensor mounting points

          Failure Modes:

          • Bearing Bore Wear: Causes shaft misalignment → belt/chain damage (P2817 code)

          • Cracking: Stress fractures near mounting bolts (over-torque during service)

          • Sealing Surface Warpage: Leads to fluid leaks (>0.1mm warpage unacceptable)

          Critical Service Notes:

          1. Use factory torque sequence (star pattern) for installation

          2. Replace rear cover gasket and all shaft seals during service

          3. Verify bearing pre-load (0.15-0.25mm shim adjustment typically required)

          Pro Tip: Apply anaerobic sealant only to specified areas - excess can block oil passages

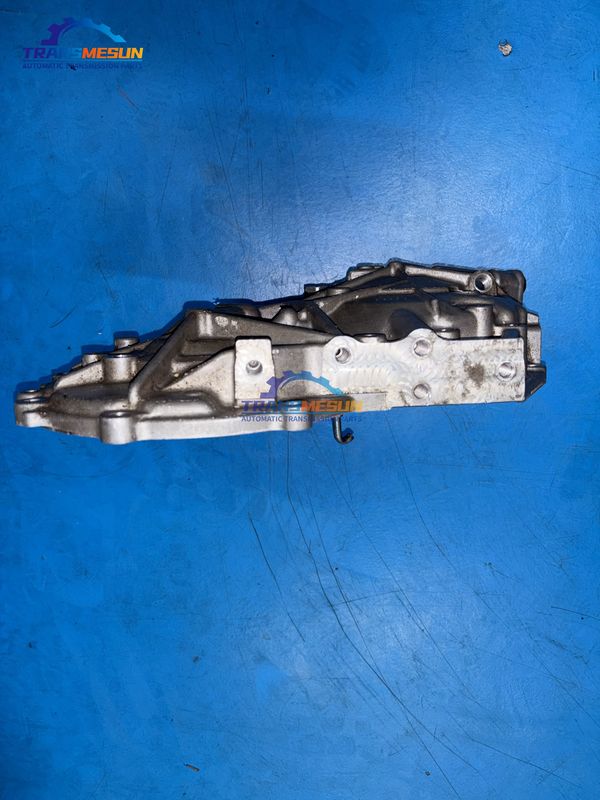

          Rear Cover Of The K114 CVT Transmission Housing With Five Fixing Holes For The 2019 Model Toyota C-HR 2.0L CVT Transmission.

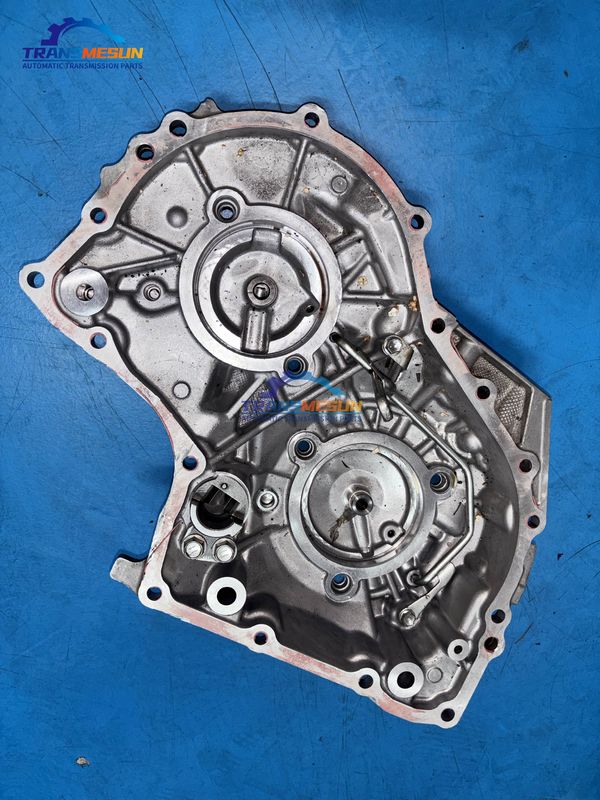

Rear Cover Of The K114 CVT Transmission Housing With Five Fixing Holes For The 2019 Model Toyota C-HR 2.0L CVT Transmission.

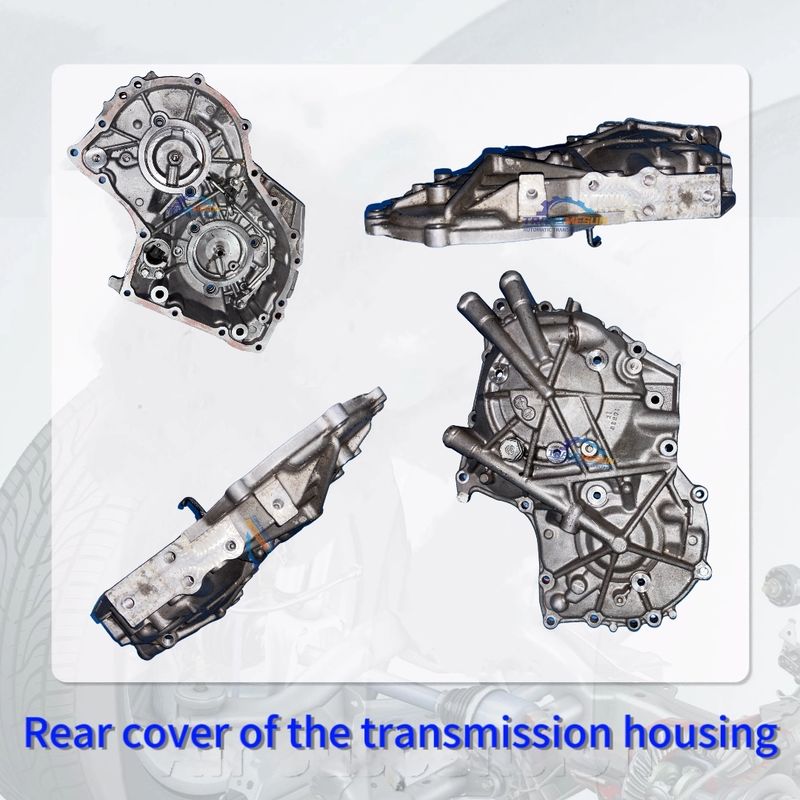

Rear Cover Of The K114 CVT Transmission Housing With Five Fixing Holes For The 2019 Model Toyota C-HR 2.0L CVT Transmission.
