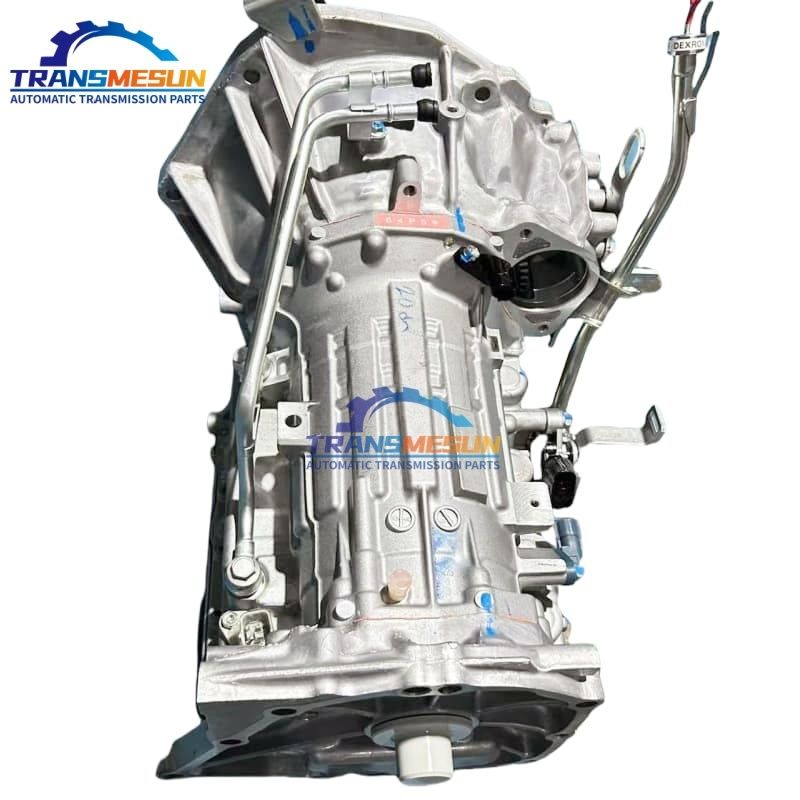

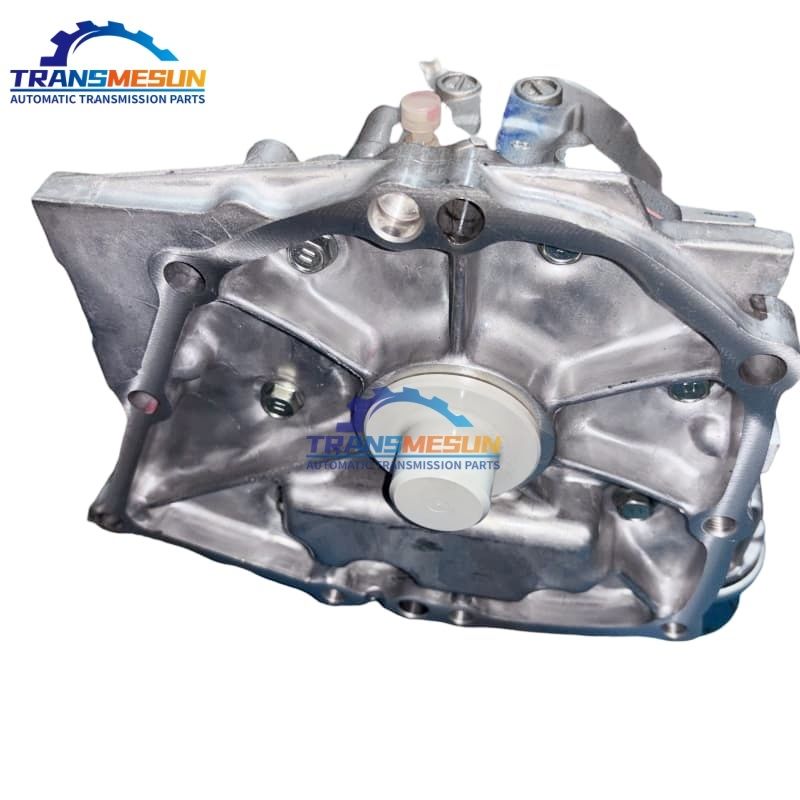

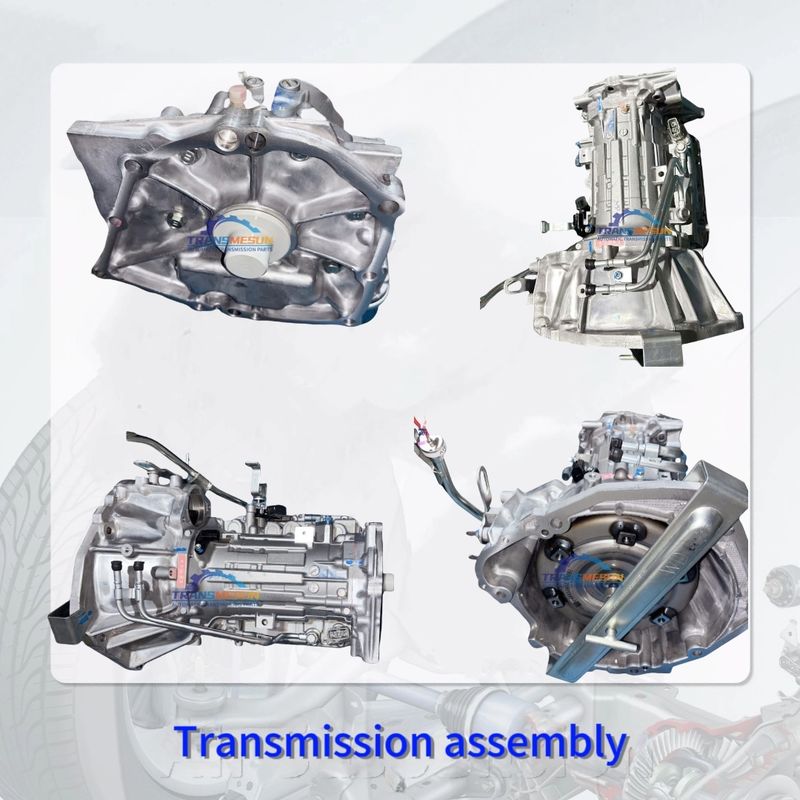

Four-wheel drive TW-40LS automatic transmission, suitable for SUZUKI 2017 model.

Product Summary
Overview: Aisin-Warner designed 4/5-speed longitudinal transmission for SUV/truck applications (e.g., older Toyota Land Cruiser Prado). Key Features: Transfer Case Integration: Full-time 4WD with center differential lock (50:50 split) Torque Capacity: Rated for 400Nm with reinforced 3-4 clutch pack ...
Basic Properties
Brand Name: SUZUKI
Model Number: TW-40LS
Trading Properties
Minimum Order Quantity: 1
Price: 0-1000
Payment Terms: T/T
Tags:

auto transmission gearbox

cvt transmission gearbox

auto transmission assembly
Product Description

        • Overview: Aisin-Warner designed 4/5-speed longitudinal transmission for SUV/truck applications (e.g., older Toyota Land Cruiser Prado).

          Key Features:

          • Transfer Case Integration: Full-time 4WD with center differential lock (50:50 split)

          • Torque Capacity: Rated for 400Nm with reinforced 3-4 clutch pack

          • Gearset: Simpson planetary with overdrive unit

          Common Failures:

          1. 3-4 Clutch Burnout: Due to delayed shift timing (P0760 codes)

          2. Transfer Case Chain Stretch: Causes 4WD engagement faults

          3. Valve Body Wear: Particularly shift solenoid B (harsh 2-3 shifts)

          Critical Maintenance:

          • Use Toyota Type T-IV or equivalent

          • Adjust band every 60k km (1.5-2.5 turns past finger tight)

          • Flush cooler lines when replacing burnt clutches

          Pro Tip: Check extension housing bushing wear – causes output shaft vibration at highway speeds.


          Four-wheel drive TW-40LS automatic transmission, suitable for SUZUKI 2017 model. 0

Four-wheel drive TW-40LS automatic transmission, suitable for SUZUKI 2017 model. 1

Four-wheel drive TW-40LS automatic transmission, suitable for SUZUKI 2017 model. 2

Product Details
Highlight:

Four-wheel drive TW-40LS

,

2017 model TW-40LS
Year：: 2015-2024
MODEL：: TW-40LS
SIZE:: 60X50X62CM
Brand：: SUZUKI
Item Weight:: 60kg
ＯＥＮＯ: 2000264P51
Displacement:: 0.6L
Applicable Brand:: Every
