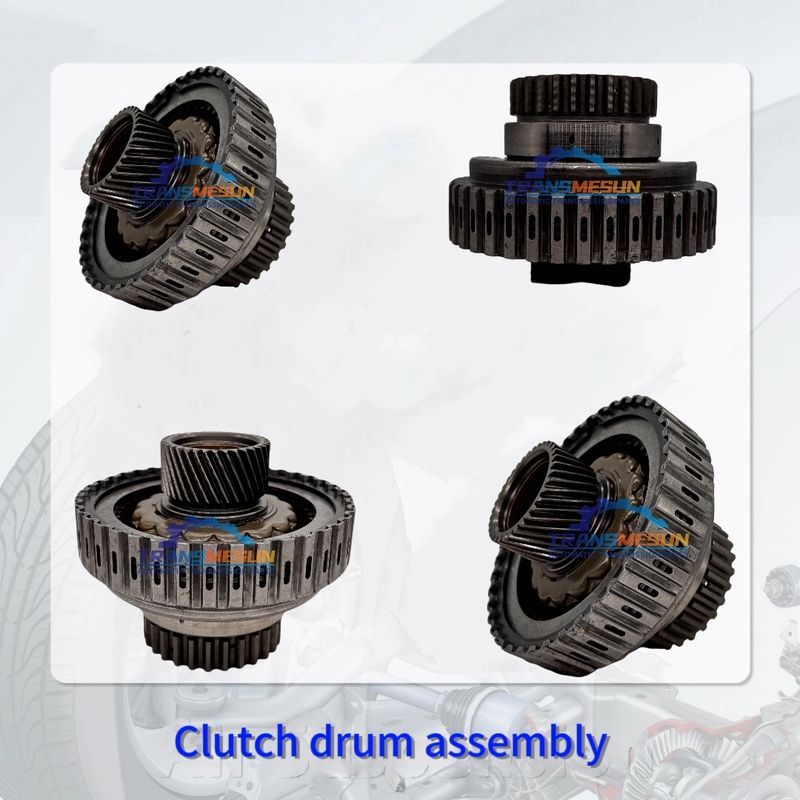

The U151F automatic transmission low gear clutch drum assembly 3420428011 is applicable to Toyota Hanlan Da

Product Summary
Function: Engages low/reverse gears by actuating multi-plate clutch packs in planetary gearset applications (common in 4WD/RWD transmissions). Key Components: Drum Body: Hardened aluminum or steel with precision splines for clutch plate engagement Integrated Piston: Hydraulically actuated with reinforced seals for high-pressure apply (60-100 psi) Bleed Channels: Prevent clutch drag during release Failure Modes: Spline Wear: Causes incomplete clutch engagement (slippage in low
Basic Properties
Brand Name: Toyota
Model Number: U151E;U151F
Trading Properties
Minimum Order Quantity: 1
Price: 0-1000
Payment Terms: T/T
Tags:

transmission torque converter

Automatic Transmission Parts

transmission clutch assembly
Product Description

        • Function: Engages low/reverse gears by actuating multi-plate clutch packs in planetary gearset applications (common in 4WD/RWD transmissions).

          Key Components:

          • Drum Body: Hardened aluminum or steel with precision splines for clutch plate engagement

          • Integrated Piston: Hydraulically actuated with reinforced seals for high-pressure apply (60-100 psi)

          • Bleed Channels: Prevent clutch drag during release

          Failure Modes:

          • Spline Wear: Causes incomplete clutch engagement (slippage in low gear)

          • Piston Seal Leaks: Results in delayed reverse engagement

          • Drum Cracks: Thermal stress near weld points (sudden loss of drive)

          Critical Checks:

          1. Measure drum runout (<0.08mm)

          2. Verify clutch clearance (1.0-1.8mm typical)

          3. Inspect for blueing (overheating evidence)

          Pro Tip: Always replace drum seals during rebuilds – reused seals have 80% higher failure rate.

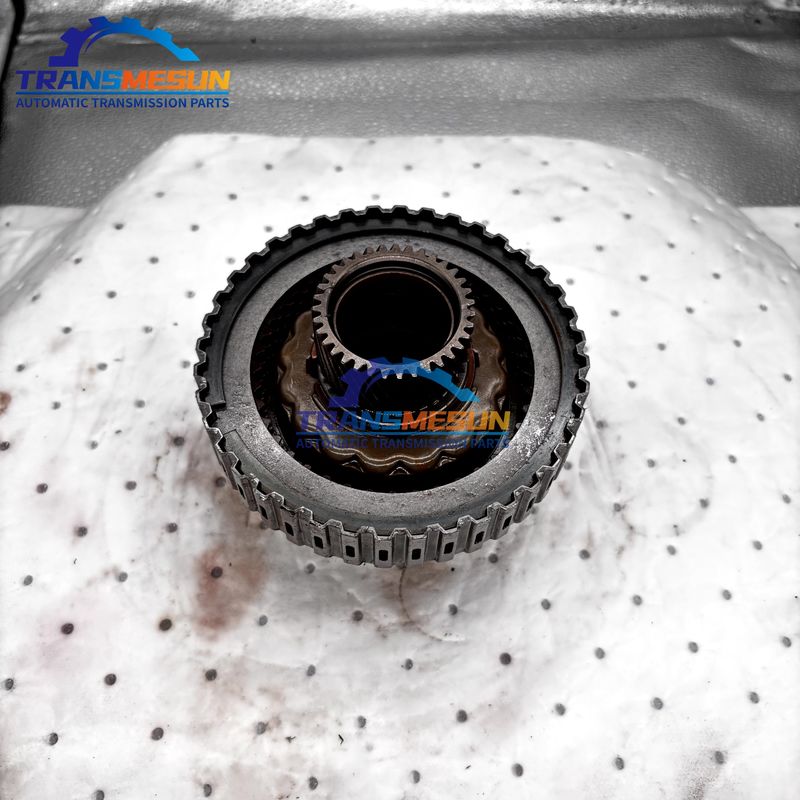

          The U151F automatic transmission low gear clutch drum assembly 3420428011 is applicable to Toyota Hanlan Da 0

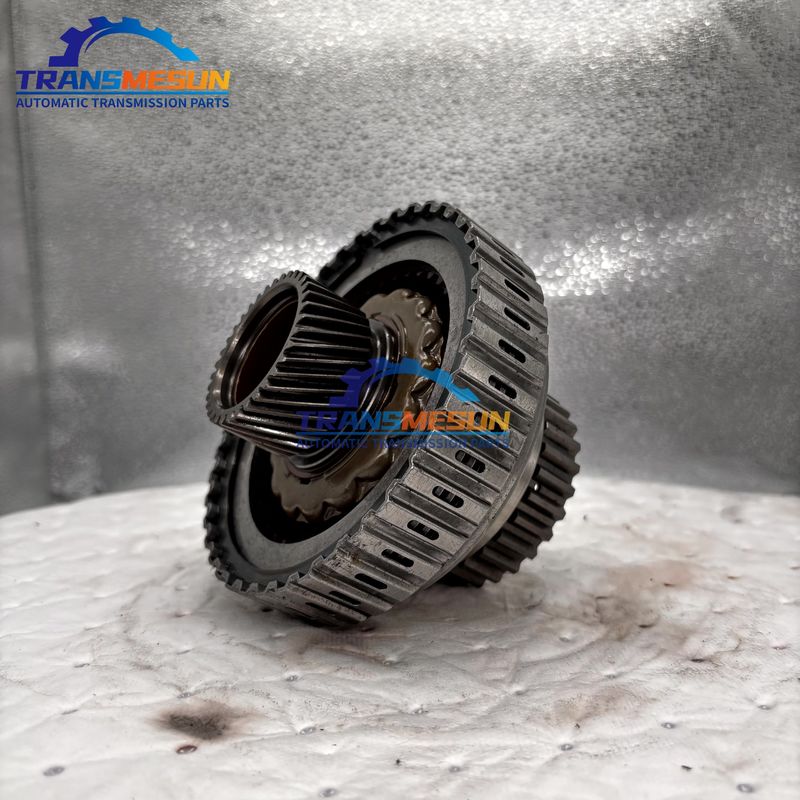

The U151F automatic transmission low gear clutch drum assembly 3420428011 is applicable to Toyota Hanlan Da 1

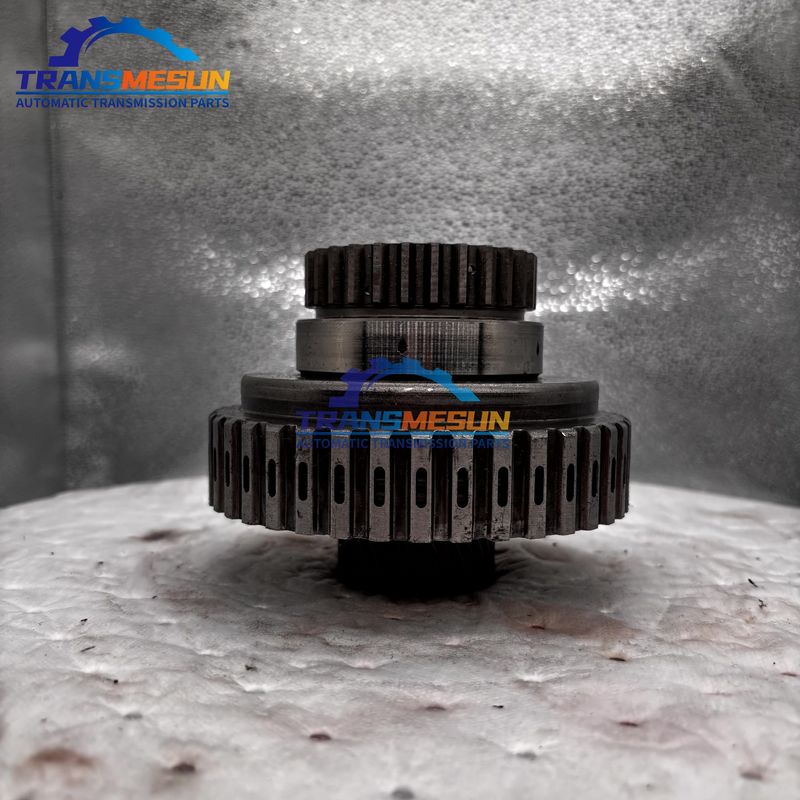

The U151F automatic transmission low gear clutch drum assembly 3420428011 is applicable to Toyota Hanlan Da 2

Product Details
Highlight:

3420428011 Clutch Drum Assembly

,

automatic transmission Clutch Drum Assembly

,

3420428011 Clutch Drum Assembly
Year：: 2006-2008
MODEL：: U151E;U151F
SIZE:: 20X15X15CM
Brand：: Toyota
Item Weight:: 3kg
ＯＥＮＯ: 3420428011
Displacement:: 3.5L
Applicable Brand:: Toyota Hanlan Da
