U151F Automatic Transmission Planetary Gear Assembly 3572028070

Basic Properties
Brand Name: Toyota
Model Number: U151E;U151F
Trading Properties
Minimum Order Quantity: 1
Price: 0-1000
Standard Packaging: Wooden box or cardboard box
Delivery Time: 5-8 work day
Payment Terms: T/T
Product Summary
Function: Torque multiplication unit for Toyota/Lexus 8-speed transmissions (e.g., Aisin AWF8G30), enabling gear ratio changes via selective clutch engagement. Key Components: Lepelletier Design: 1 Ravigneaux + 1 simple planetary set for compact 8-speed ratios Hardened Gears: Case-hardened steel ...

Product Details

Highlight:

U151F Automatic Transmission Assembly

,

3572028070 Automatic Transmission Assembly

Year:: 2001-2014
MODEL:: U151E;U151F
SIZE:: 25X20X20CM
Brand:: Toyota
Item Weight:: 6kg
OENO: 3572028070;3572021020
Displacement:: 3.0L;3.3L. 3.5L
Applicable Brand:: ALPHARD;ALPHARD G/V;CAMRY;ESTIMA T/L;HARRIER
Product Description
        • Function: Torque multiplication unit for Toyota/Lexus 8-speed transmissions (e.g., Aisin AWF8G30), enabling gear ratio changes via selective clutch engagement.

          Key Components:

          • Lepelletier Design: 1 Ravigneaux + 1 simple planetary set for compact 8-speed ratios

          • Hardened Gears: Case-hardened steel (HRC 60+) with ground tooth profiles

          • Needle Bearings: Low-friction support for planetary pinions

          Failure Modes:

          • Sun Gear Spline Wear: Causes 3-5-7 gear slippage (P2714 codes)

          • Pinion Bearing Failure: Results in gear whine (check endplay <0.15mm)

          • Carrier Cracks: Fatigue near thrust washers (metal debris in pan)

          Critical Specs:

          1. Sun gear axial play: 0.10-0.25mm

          2. Pinion gear backlash: 0.05-0.12mm

          Pro Tip: Always replace planetary thrust washers during rebuilds – worn washers alter gear alignment.

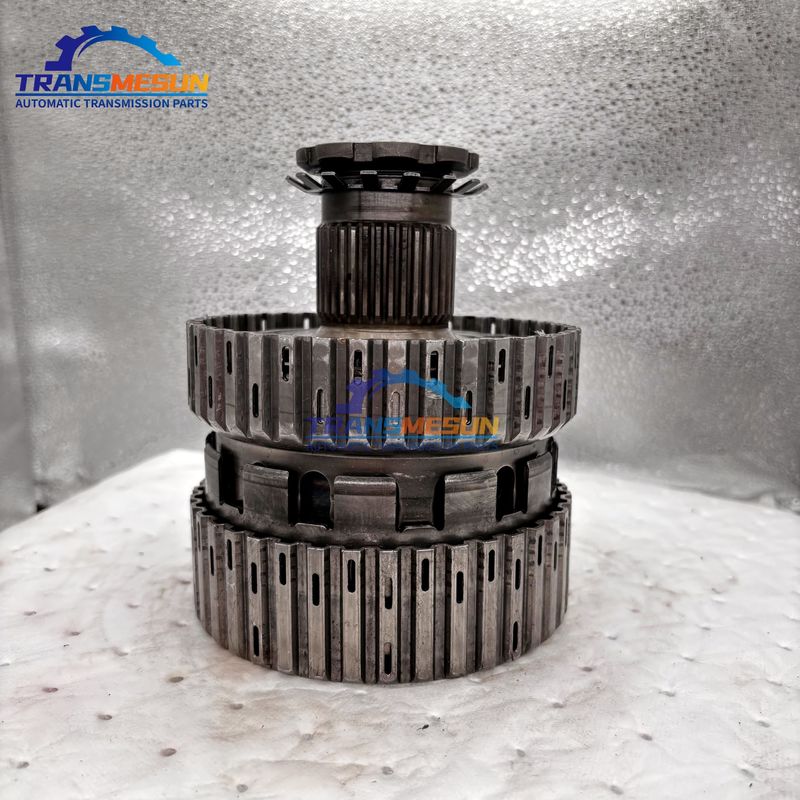

          U151F Automatic Transmission Planetary Gear Assembly 3572028070

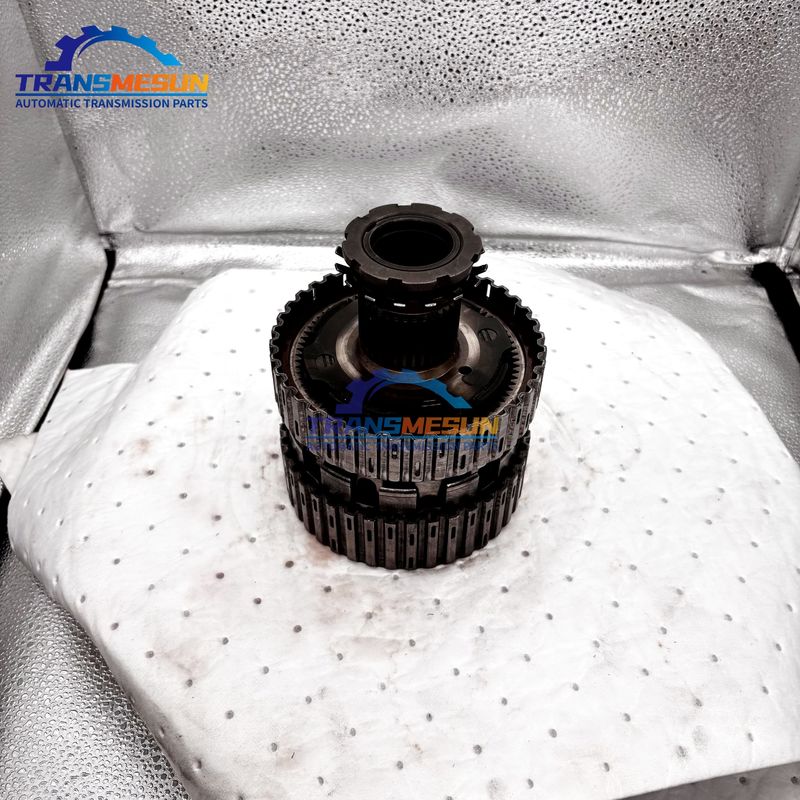

          U151F Automatic Transmission Planetary Gear Assembly 3572028070

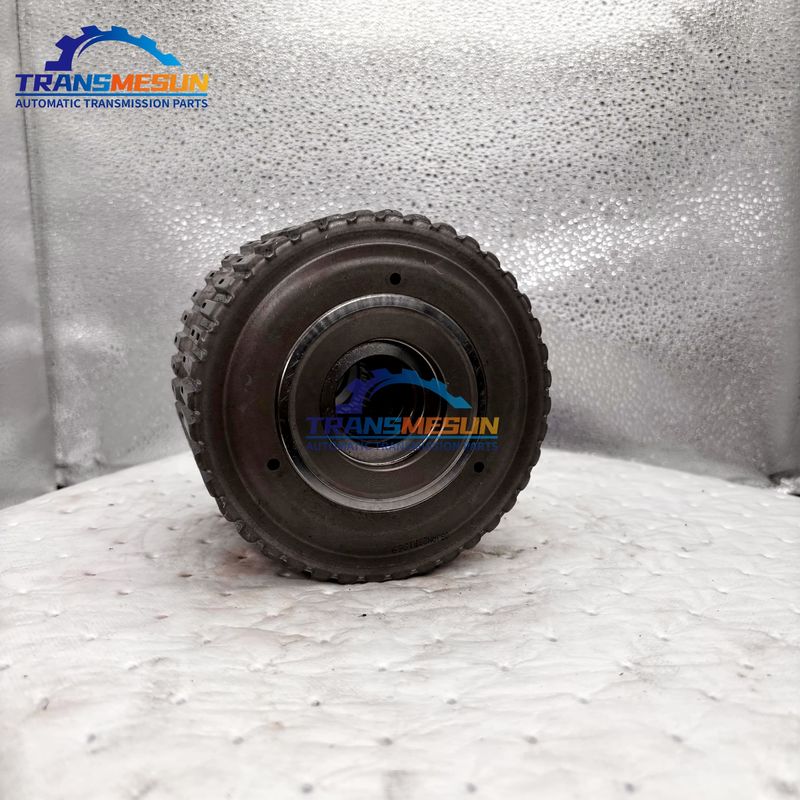

U151F Automatic Transmission Planetary Gear Assembly 3572028070

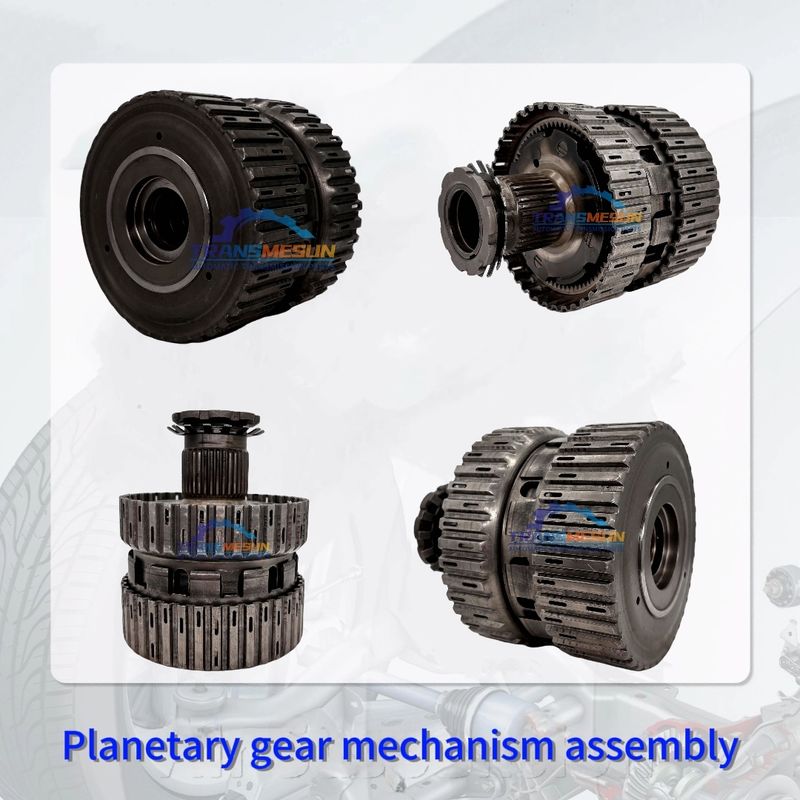

U151F Automatic Transmission Planetary Gear Assembly 3572028070
