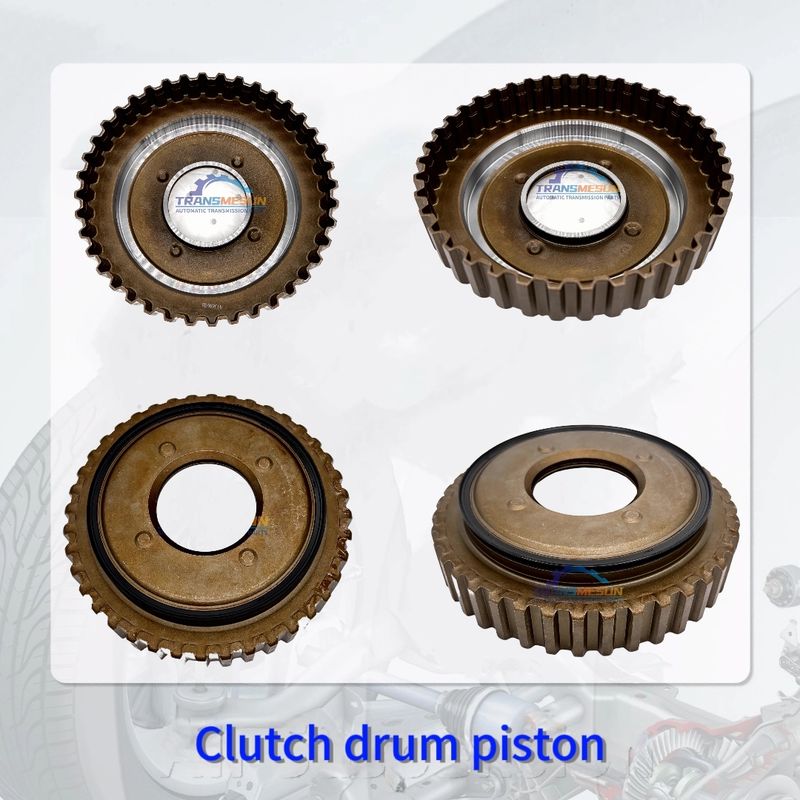

The piston of the direct clutch drum for the overdrive gear of the U250E automatic transmission is 3460133030.

Product Summary
Function: Engages overdrive (O/D) gear by applying hydraulic pressure to clutch pack in planetary transmissions (e.g., 4L60E, A340E). Key Features: Material: Billet aluminum with micro-polished bore (surface finish Ra ≤0.8μm) Seal Design: Dual-lipped HNBR or Viton for high-temp stability (>250°F) Bleed Circuit: Quick-release channels prevent clutch drag Failure Modes: Seal Roll-Over: Improper installation causes pressure leaks (O/D slippage) Bore Scoring: Contaminants jam
Basic Properties
Brand Name: Toyota
Model Number: U250E
Trading Properties
Minimum Order Quantity: 1
Price: 0-1000
Payment Terms: T/T
Tags:

transmission torque converter

Automatic Transmission Parts

transmission clutch assembly
Product Description

        • Function: Engages overdrive (O/D) gear by applying hydraulic pressure to clutch pack in planetary transmissions (e.g., 4L60E, A340E).

          Key Features:

          • Material: Billet aluminum with micro-polished bore (surface finish Ra ≤0.8μm)

          • Seal Design: Dual-lipped HNBR or Viton for high-temp stability (>250°F)

          • Bleed Circuit: Quick-release channels prevent clutch drag

          Failure Modes:

          • Seal Roll-Over: Improper installation causes pressure leaks (O/D slippage)

          • Bore Scoring: Contaminants jam piston (delayed O/D engagement)

          • Fatigue Cracks: Stress fractures near apply lugs (sudden O/D loss)

          Critical Specs:

          1. Piston-to-bore clearance: 0.03-0.07mm

          2. Apply pressure: 55-85 psi (varies by transmission)

          Pro Tip: Lubricate seals with petroleum-free grease during assembly – petroleum degrades rubber.

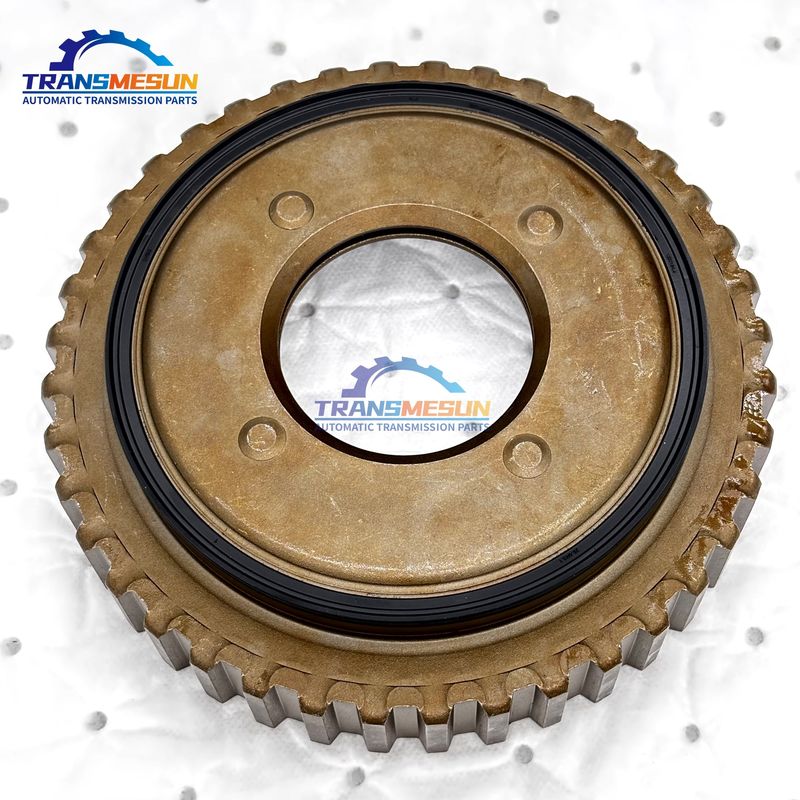

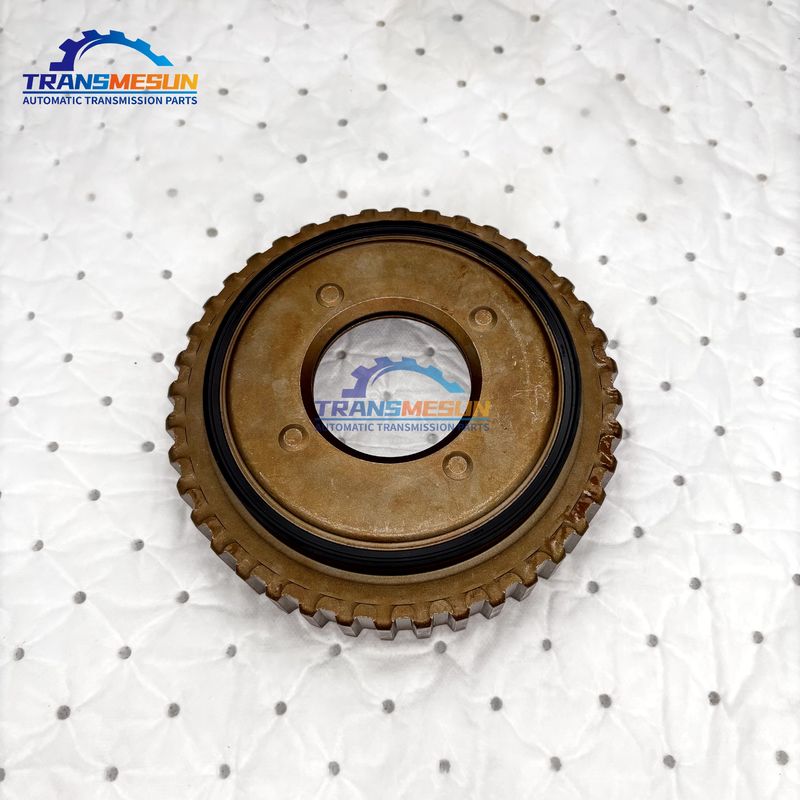

          The piston of the direct clutch drum for the overdrive gear of the U250E automatic transmission is 3460133030. 0

The piston of the direct clutch drum for the overdrive gear of the U250E automatic transmission is 3460133030. 1

The piston of the direct clutch drum for the overdrive gear of the U250E automatic transmission is 3460133030. 2

Product Details
Highlight:

Automatic Transmission Piston

,

Direct Clutch Drum piston

,

3460133030 automatic transmission piston
Year：: 2005-2013
MODEL：: U250E
SIZE:: 25X25X20CM
Brand：: Toyota
Item Weight:: 1.5kg
ＯＥＮＯ: 3460133030；34601-33H01
Displacement:: 2.4L
Applicable Brand:: Camry/Aurion/Hv；Camry/Hybrid；Corolla
