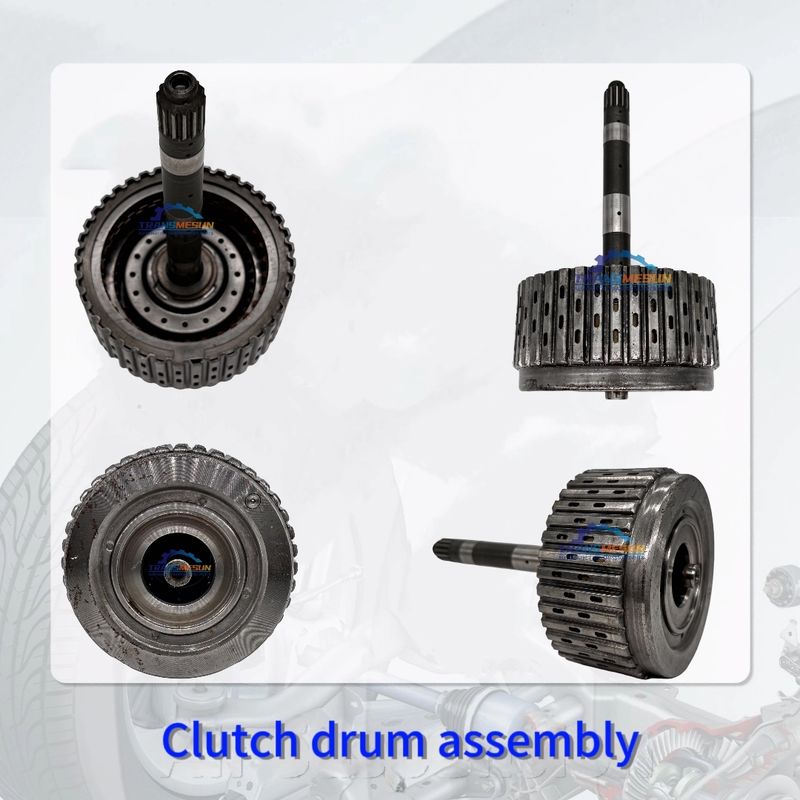

U340E automatic transmission intermediate shaft direct gear direct clutch drum assembly

Product Summary
Function: Engages direct drive (1:1 ratio) in Toyota 4-speed transmissions by locking planetary components via multi-plate clutch. Key Components: Drum Material: Forged aluminum with hardened steel splines (OEM 33404-30030) Integrated Piston: Triple-lip seal design for high-pressure stability (90...
Basic Properties
Brand Name: Toyota
Model Number: U340E；U340F;U341E;U341F
Trading Properties
Minimum Order Quantity: 1
Price: 0-1000
Payment Terms: T/T
Tags:

transmission torque converter

Automatic Transmission Parts

transmission clutch assembly
Product Description

        • Function: Engages direct drive (1:1 ratio) in Toyota 4-speed transmissions by locking planetary components via multi-plate clutch.

          Key Components:

          • Drum Material: Forged aluminum with hardened steel splines (OEM 33404-30030)

          • Integrated Piston: Triple-lip seal design for high-pressure stability (90-120 psi apply)

          • Bearing Surfaces: Precision-ground for input shaft support

          Failure Modes:

          • Spline Rounding: Causes clutch slippage (P0770 codes)

          • Seal Extrusion: ATF degradation leads to pressure loss (delayed engagement)

          • Thrust Washer Wear: Alters axial clearance → clutch drag

          Critical Specs:

          1. Drum runout limit: <0.05mm

          2. Clutch pack clearance: 0.8-1.2mm

          3. Shaft endplay: 0.1-0.3mm

          Pro Tip: Replace both drum and input shaft if splines show polishing – indicates mutual wear

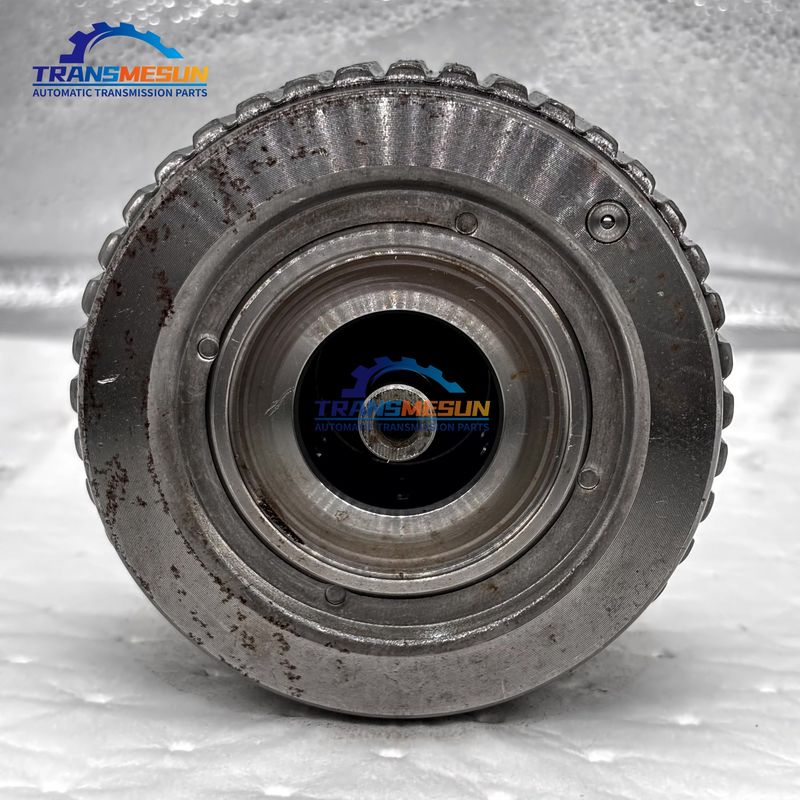

          U340E automatic transmission intermediate shaft direct gear direct clutch drum assembly 0

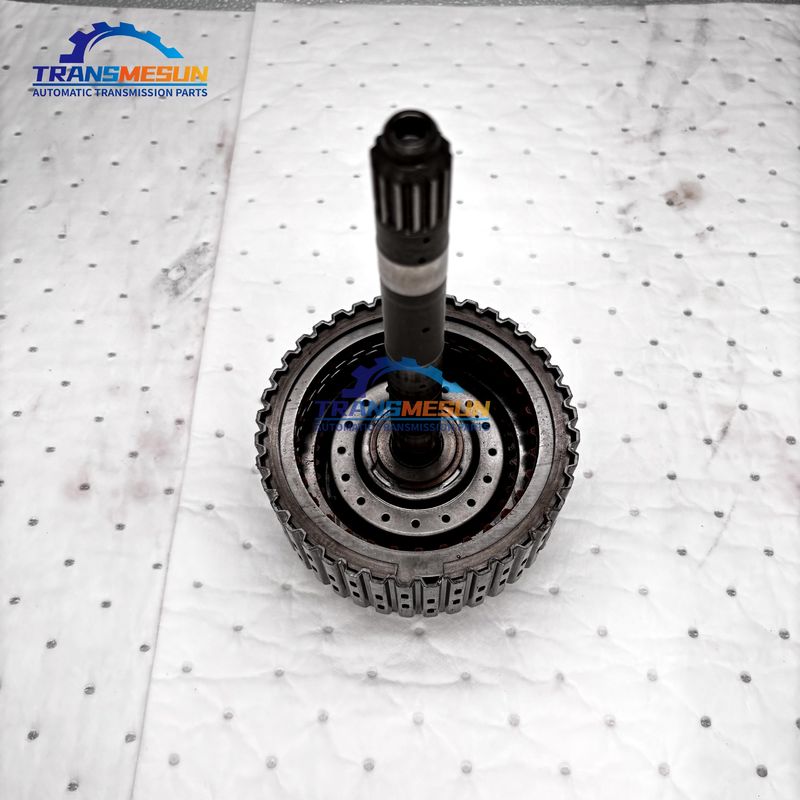

U340E automatic transmission intermediate shaft direct gear direct clutch drum assembly 1

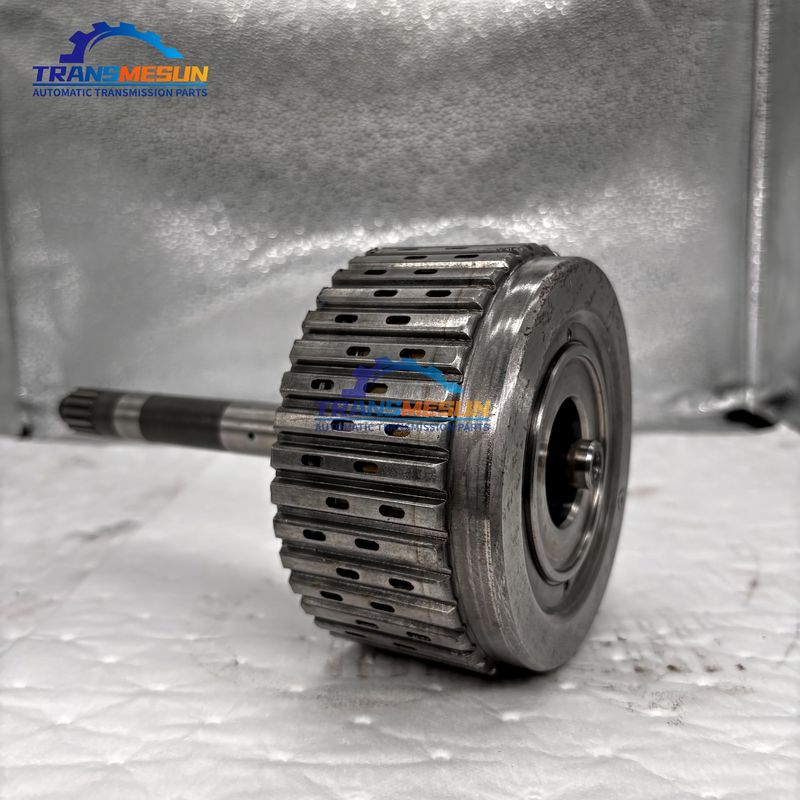

U340E automatic transmission intermediate shaft direct gear direct clutch drum assembly 2

Product Details
Highlight:

Automatic Transmission Direct Clutch Drum

,

Automatic Transmission Intermediate Shaft

,

U340E Direct Clutch Drum
Year：: 1999-2015
MODEL：: U340E；U340F;U341E;U341F
SIZE:: 25X25X20CM
Brand：: Toyota
Item Weight:: 3kg
ＯＥＮＯ: 3570852030
Displacement:: 1.5L.;1.6L
Applicable Brand:: AURIS/HYBRID BB/OPEN DECK COROLLA COROLLA (S.AFRICA) COROLLA RUNX/ALLEX COROLLA SED COROLLA SED/WG COROLLA SPACIO COROLLA/ALTIS
