U760E U760F Automatic Transmission Rear Planetary Gearset Sun Gear Assembly

Basic Properties
Brand Name: Toyota
Model Number: U760E;U760F;U761E;U761F
Trading Properties
Minimum Order Quantity: 1
Price: 0-1000
Standard Packaging: Wooden box or cardboard box
Delivery Time: 5-8 work day
Payment Terms: T/T
Product Summary
Function: Central torque distributor in Toyota/Lexus 6-speed FWD planetary gearset, enabling 5th/6th gear ratios. Key Features: Material: Case-hardened alloy steel (HRC 58-62) with ground helical teeth Spline Design: Micro-polished internal splines for reduced wear against input shaft Thrust Control...

Product Details

Highlight:

Automatic Transmission Rear Planetary Gearset

Year:: 2001-2014
MODEL:: U760E;U760F;U761E;U761F
SIZE:: 15X15X15CM
Brand:: Toyota
Item Weight:: 1.5kg
OENO: 3573073010;3573033030
Displacement:: 2.5L;2.7L
Applicable Brand:: Camry/Aurion/Hv Camry/Hybrid;Highlander;Rav4
Product Description
        • Function: Central torque distributor in Toyota/Lexus 6-speed FWD planetary gearset, enabling 5th/6th gear ratios.

          Key Features:

          • Material: Case-hardened alloy steel (HRC 58-62) with ground helical teeth

          • Spline Design: Micro-polished internal splines for reduced wear against input shaft

          • Thrust Control: Integrated washer surface (critical for axial play adjustment)

          Failure Modes:

          • Spline Stripping: Causes gear spin (sudden 5-6 shift flare, P2716 codes)

          • Tooth Pitting: Fatigue from high-mileage overdrive use (whining noise)

          • Bearing Surface Wear: Alters planetary alignment (>0.15mm wear = replace)

          Critical Specs:

          1. Sun gear axial play: 0.10-0.25mm (requires selective thrust washers)

          2. Backlash with pinions: 0.07-0.13mm

          Pro Tip: Always replace sun gear and planetary carrier as matched set – mismatched wear patterns cause premature failure.

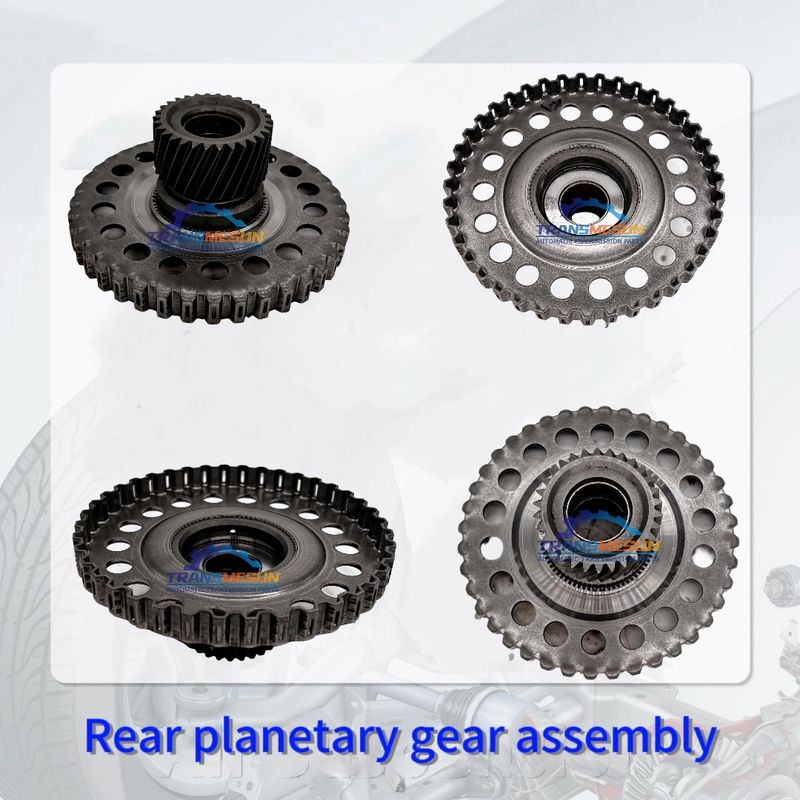

          U760E U760F Automatic Transmission Rear Planetary Gearset Sun Gear Assembly

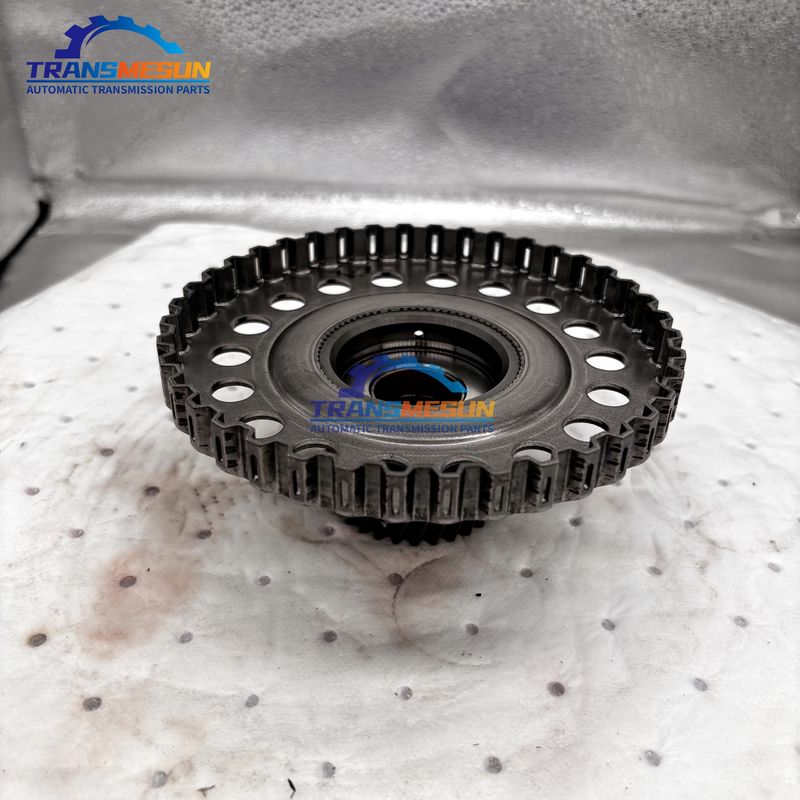

U760E U760F Automatic Transmission Rear Planetary Gearset Sun Gear Assembly

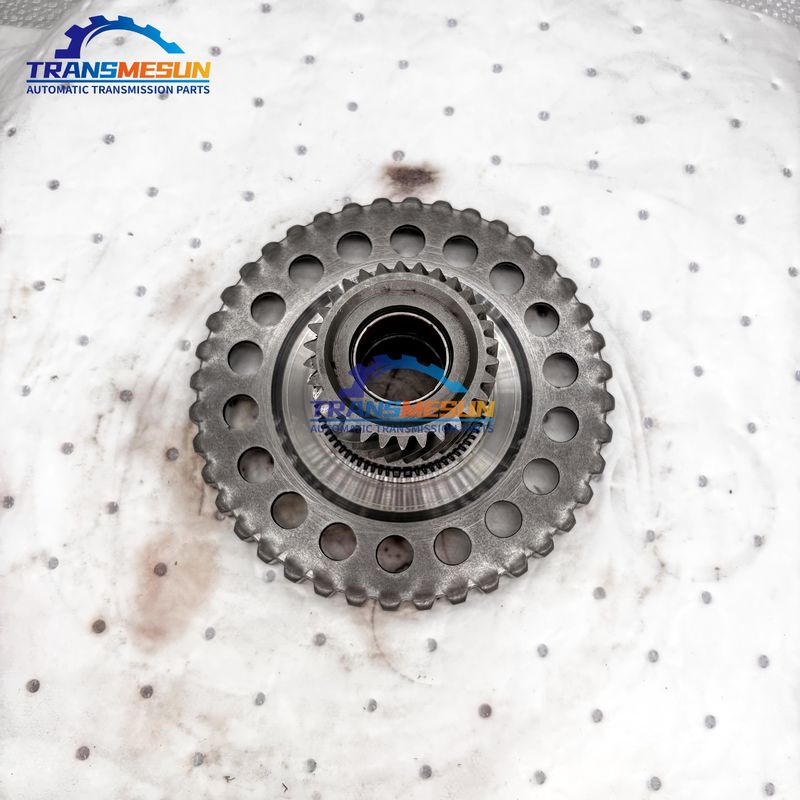

U760E U760F Automatic Transmission Rear Planetary Gearset Sun Gear Assembly
