U760E U760F Automatic Transmission Rear Planetary Gear Assembly 3572033050

U760E U760F Automatic Transmission Rear Planetary Gear Assembly 3572033050

U760F Planetary Gear Assembly

U760E Planetary Gear Assembly

3572033050 Rear Planetary Gear Assembly

Brand Name:

Toyota

Model Number:

U760E;U760F;U761E;U761F

Contact Us
Request a Quote
Product Details
Year::
2001-2014
MODEL::
U760E;U760F;U761E;U761F
SIZE::
15X25X15CM
Brand::
Toyota
Item Weight::
6kg
OENO:
3572033070;3572033050;3574333040
Displacement::
2.5L;2.7L
Applicable Brand::
Camry/Aurion/Hv Camry/Hybrid;Highlander
Highlight:

U760F Planetary Gear Assembly

,

U760E Planetary Gear Assembly

,

3572033050 Rear Planetary Gear Assembly

Payment & Shipping Terms
Minimum Order Quantity
1
Price
0-1000
Packaging Details
Wooden box or cardboard box
Delivery Time
5-8 work day
Payment Terms
T/T
Product Description
        • Function: Final torque multiplication stage in planetary transmissions, typically controlling overdrive/reverse gear ratios.

          Key Components:

          • Sun Gear: Hardened steel core with ground teeth (HRC 60+)

          • Planet Carrier: Precision-machined with needle bearing pockets

          • Ring Gear: Often integrated into transmission case

          Failure Modes:

          • Sun Gear Spline Wear: Causes ratio slippage (P0730-P0733 codes)

          • Pinion Bearing Failure: Results in gear whine (check endplay <0.2mm)

          • Carrier Cracks: Stress fractures near thrust surfaces

          Critical Measurements:

          1. Sun-to-pinion backlash: 0.08-0.15mm

          2. Axial play: <0.25mm (adjust via selective washers)

          Pro Tip: Always replace planetary sets as complete assemblies – mixed components alter load distribution.

          (Covers fundamental planetary mechanics and rebuild protocols.)

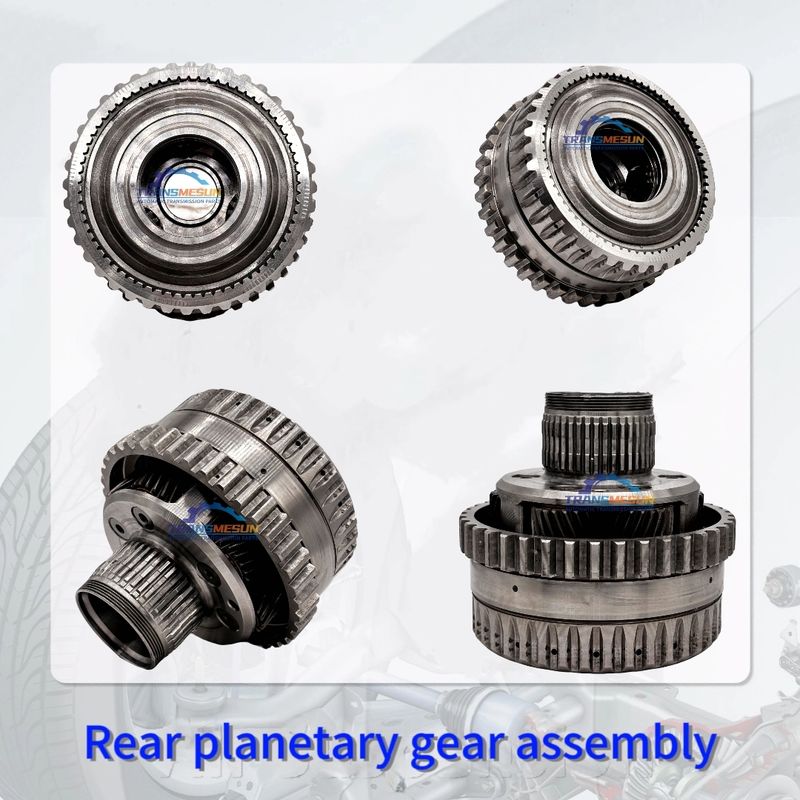

          U760E U760F Automatic Transmission Rear Planetary Gear Assembly 3572033050 0

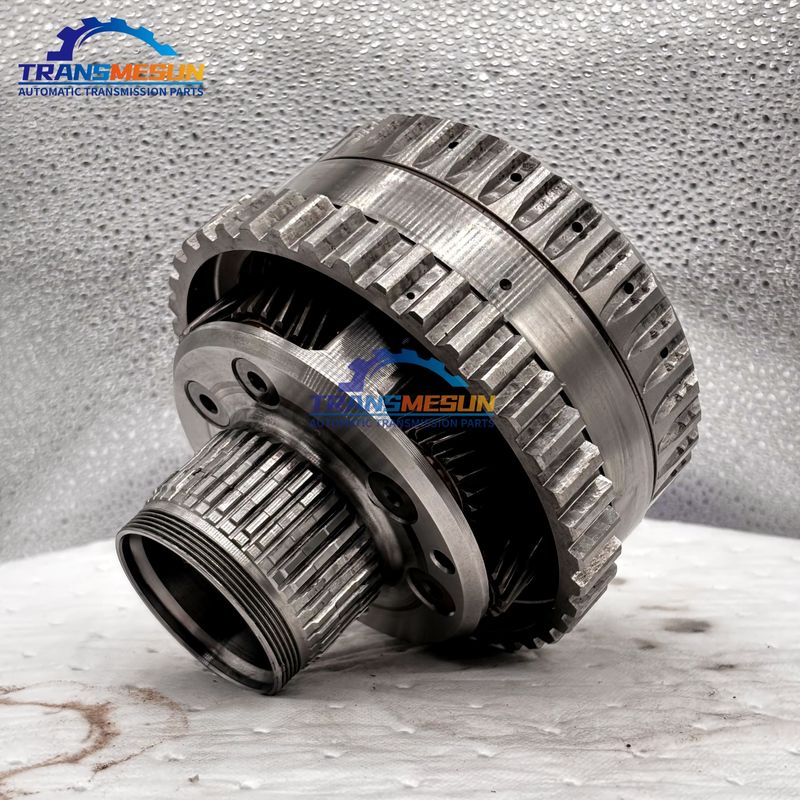

U760E U760F Automatic Transmission Rear Planetary Gear Assembly 3572033050 1

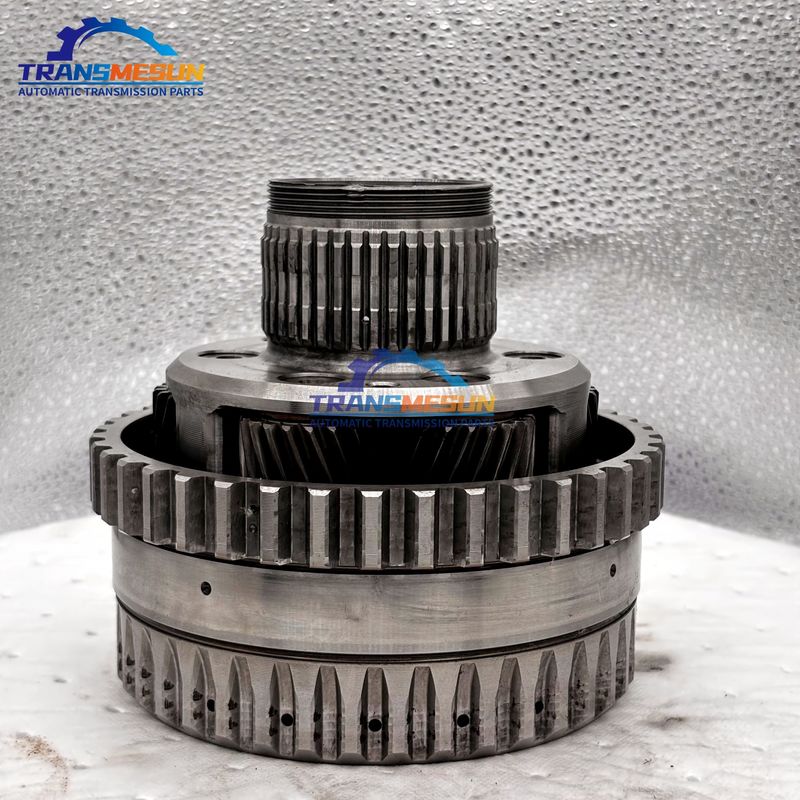

U760E U760F Automatic Transmission Rear Planetary Gear Assembly 3572033050 2
