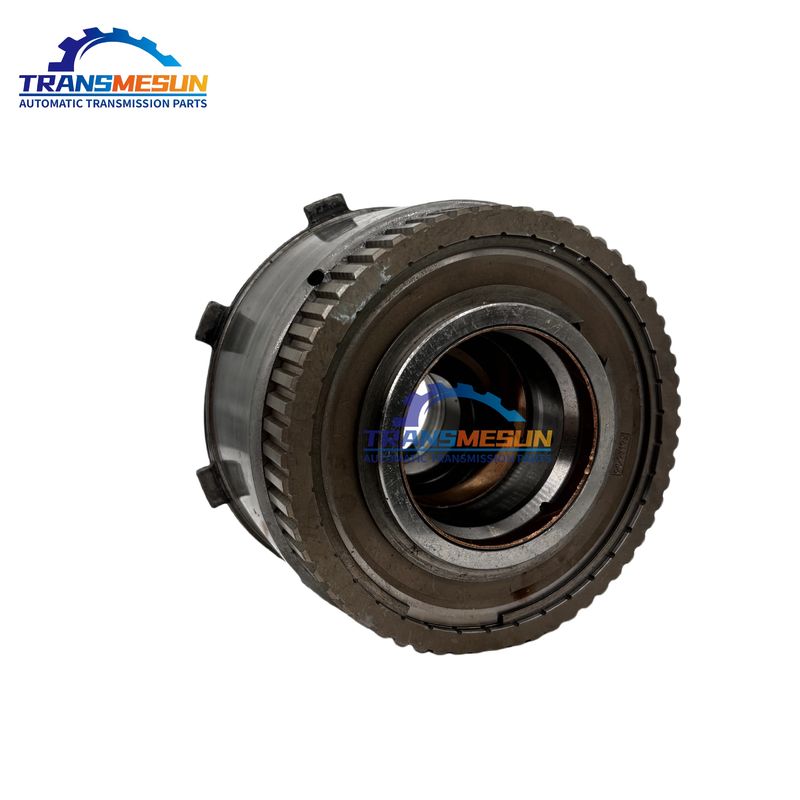

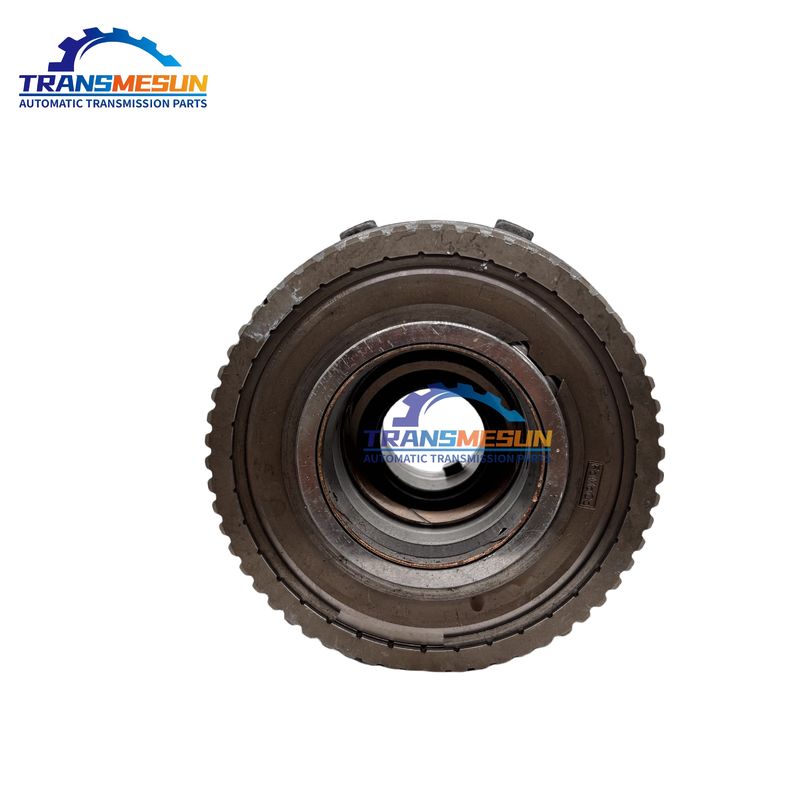

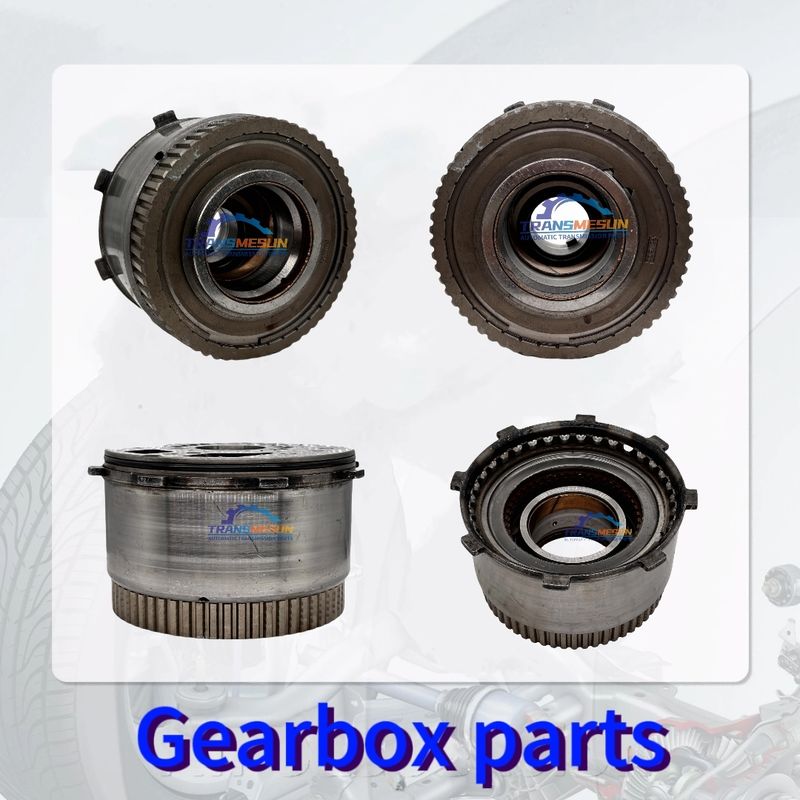

Reverse Gear Drum Clutch Of The 4R75 Gearbox With A Low-position One-way Clutch For Ford

Basic Properties
Brand Name: for Ford
Model Number: 4R70W;4R75
Trading Properties
Minimum Order Quantity: 1
Price: 0-1000
Standard Packaging: Wooden box or cardboard box
Delivery Time: 5-8 work day
Payment Terms: T/T
Product Summary
Typical Faults: One-Way Clutch Roller Jamming Symptom: Harsh 1-2 upshift or delayed reverse engagement (P0730/P0756 codes) Cause: Contaminated fluid or sprag spring fatigue Drum Spline Wear Symptom: Reverse slippage or metallic noise Trigger: Hard shifts causing torsional stress Thrust Washer ...

Product Details

Highlight:

reverse gear drum clutch 4R75

,

Low position one-way clutch

,

Reverse gear drum clutch

Year:: 1998-2003
MODEL:: 4R70W;4R75
SIZE:: 20X20X25CM
Brand:: For Ford
Item Weight:: 6kg
OENO: 3L3Z-7D044-AA;F3TZ-7A089-A
Applicable Brand:: 1998-2003 Ford E-350/E-350 Super Duty 10 Cyl 6.8L, 8 Cyl 5.4L, 8 Cyl 7.3L Diesel Turbocharged 4AT 4R100, 4AT 4R70W, 4AT E4OD 1998-2003 Ford Expedition 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI, 8 Cyl 5.4L, 8 Cyl 5.4L Modular SOHC
Product Description
        • Typical Faults:

          1. One-Way Clutch Roller Jamming

            • Symptom: Harsh 1-2 upshift or delayed reverse engagement (P0730/P0756 codes)

            • Cause: Contaminated fluid or sprag spring fatigue

          2. Drum Spline Wear

            • Symptom: Reverse slippage or metallic noise

            • Trigger: Hard shifts causing torsional stress

          3. Thrust Washer Failure

            • Symptom: Axial play >0.25mm (whining in reverse)

            • Root Cause: Improper assembly torque

          Critical Checks:

          • Sprag Clutch Test: Should lock counterclockwise only

          • Drum Runout: <0.08mm tolerance

          • Fluid: MERCON V only – others degrade OWC lubrication

          Pro Tip: Replace entire drum assembly if splines show polishing – indicates mutual wear with planetary gears.


          Reverse Gear Drum Clutch Of The 4R75 Gearbox With A Low-position One-way Clutch For Ford

Reverse Gear Drum Clutch Of The 4R75 Gearbox With A Low-position One-way Clutch For Ford

Reverse Gear Drum Clutch Of The 4R75 Gearbox With A Low-position One-way Clutch For Ford
