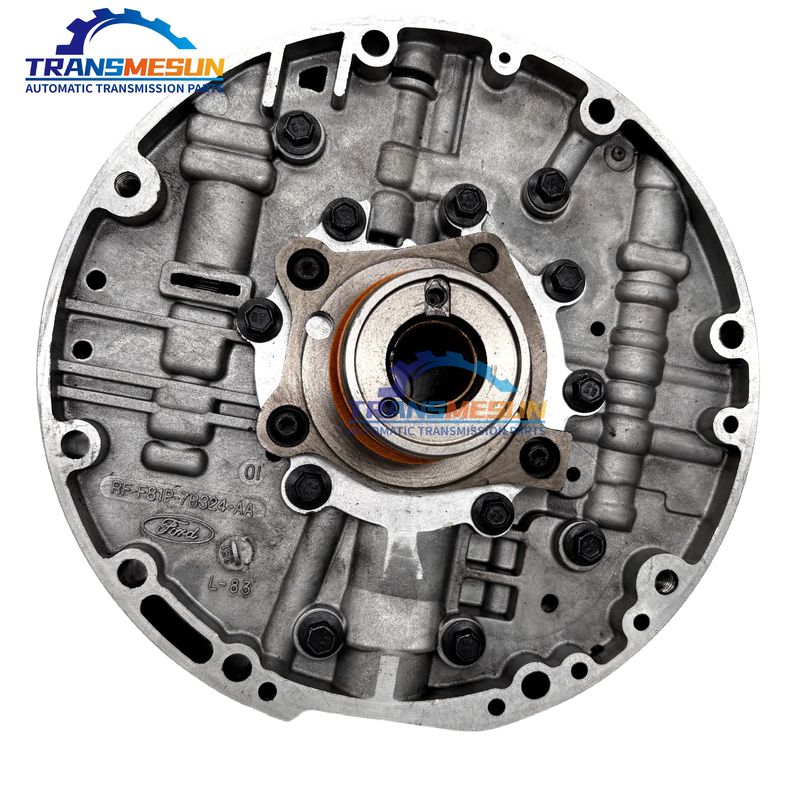

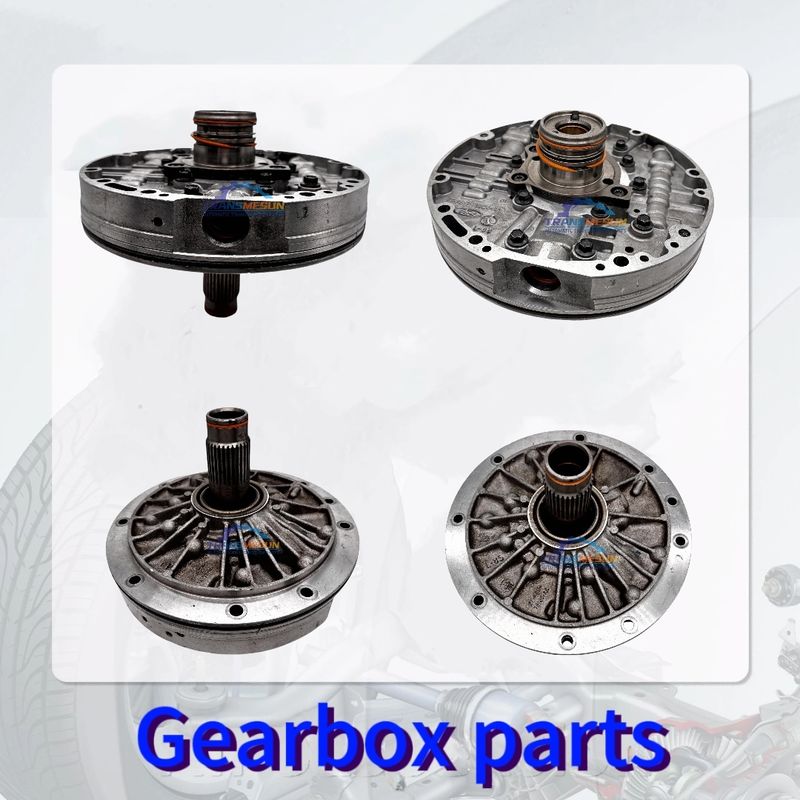

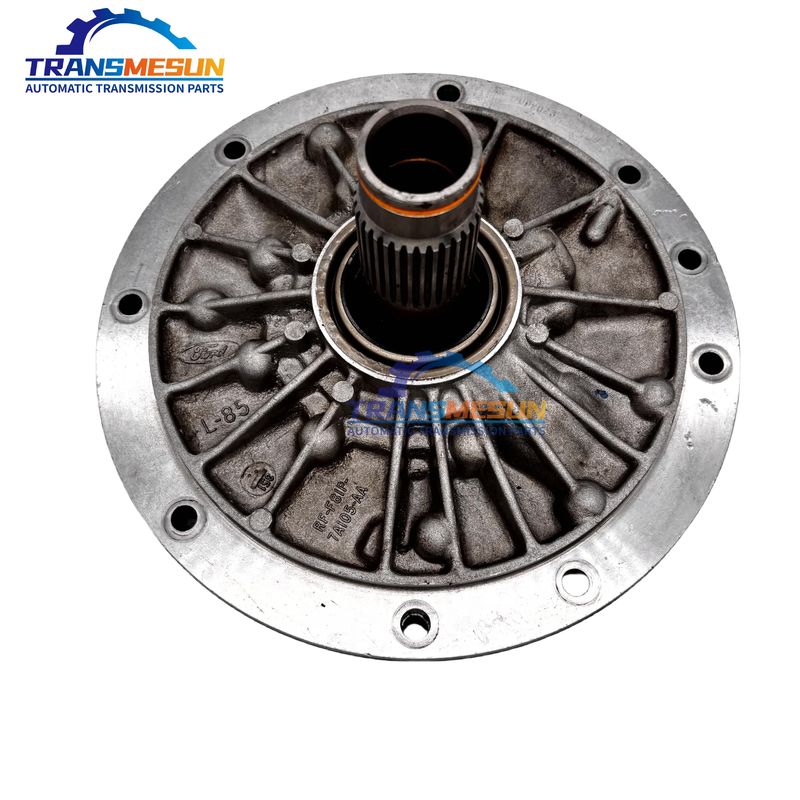

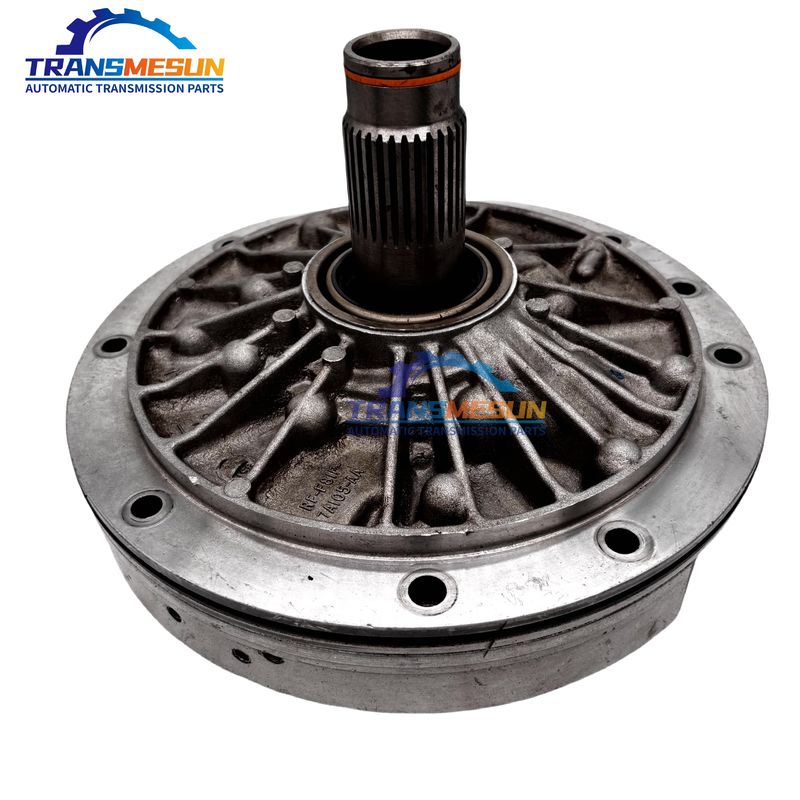

4R100 Automatic Transmission Oil Pump RF-F81P-7B324-AA
Product Summary
Typical Faults: Rotor/Gear Wear Symptom: Low line pressure (P0841/P0868 codes, delayed shifts) Cause: Contaminated ATF or metal debris scoring surfaces Seal Failure Symptom: Pressure loss at idle (pump whine) Trigger: Hardened/rolled seals from heat/age Cavitation Damage Symptom: Foamy ATF, erratic shifts Root Cause: Clogged filter or aerated fluid Critical Checks: Clearance: Rotor-to-housing >0.15mm = replace Prime Test: Should generate 20+ psi instantly at crank Debris
Basic Properties
Brand Name:
FORD
Model Number:
4R100
Trading Properties
Minimum Order Quantity:
1
Price:
0-1000
Payment Terms:
T/T
Product Description
-
-
-
-
Typical Faults:
-
Rotor/Gear Wear
-
Symptom: Low line pressure (P0841/P0868 codes, delayed shifts)
-
Cause: Contaminated ATF or metal debris scoring surfaces
-
-
Seal Failure
-
Symptom: Pressure loss at idle (pump whine)
-
Trigger: Hardened/rolled seals from heat/age
-
-
Cavitation Damage
-
Symptom: Foamy ATF, erratic shifts
-
Root Cause: Clogged filter or aerated fluid
-
Critical Checks:
-
Clearance: Rotor-to-housing >0.15mm = replace
-
Prime Test: Should generate 20+ psi instantly at crank
-
Debris Inspection: Metal flakes indicate imminent failure
Pro Tip: Always replace pump and torque converter simultaneously – 70% of pump failures originate from TC debris.
-
-
-
-
Product Details
Highlight:
F81P-7B324-AA Transmission Oil Pump
,Automatic Transmission Oil Pump
,4R100 Transmission Oil Pump
Year：:
1999-2003
MODEL：:
4R100
SIZE::
30X30X25CM
Brand：:
FORD
Item Weight::
5kg
ＯＥＮＯ:
RF-F81P-7A105-AA
Applicable Brand::
1999 - 2003 Ford Excursion With 4R100 Transmission 1997 - 2004 Ford E-series Van, Equipped With 4R100 Transmission
