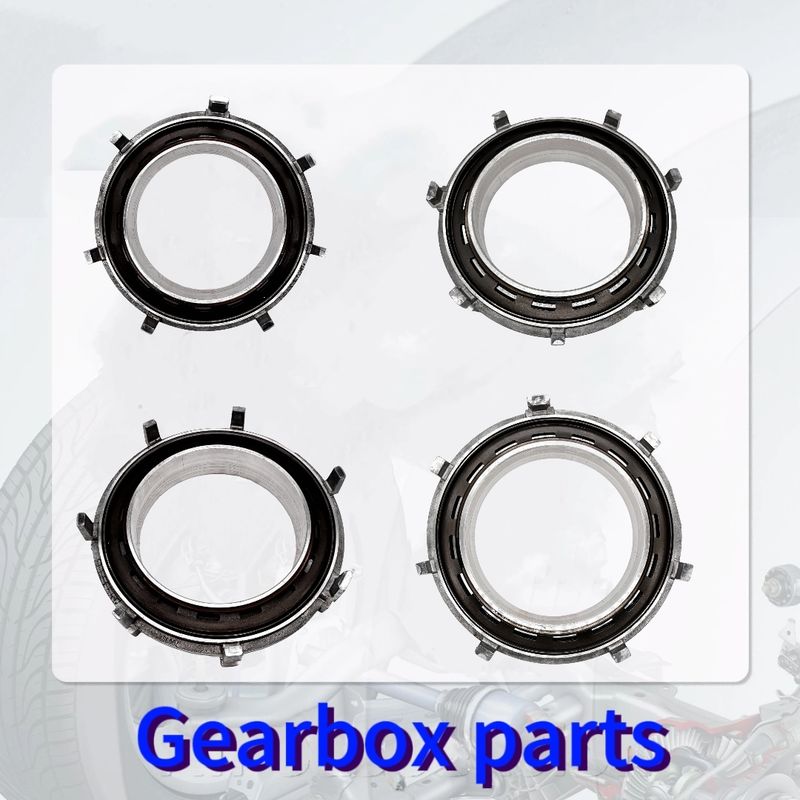

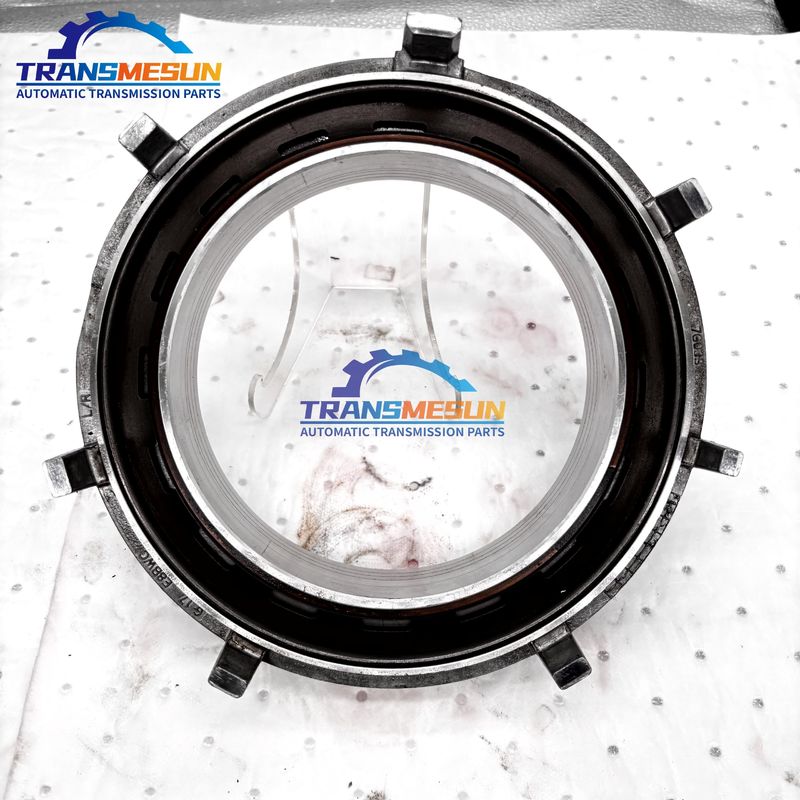

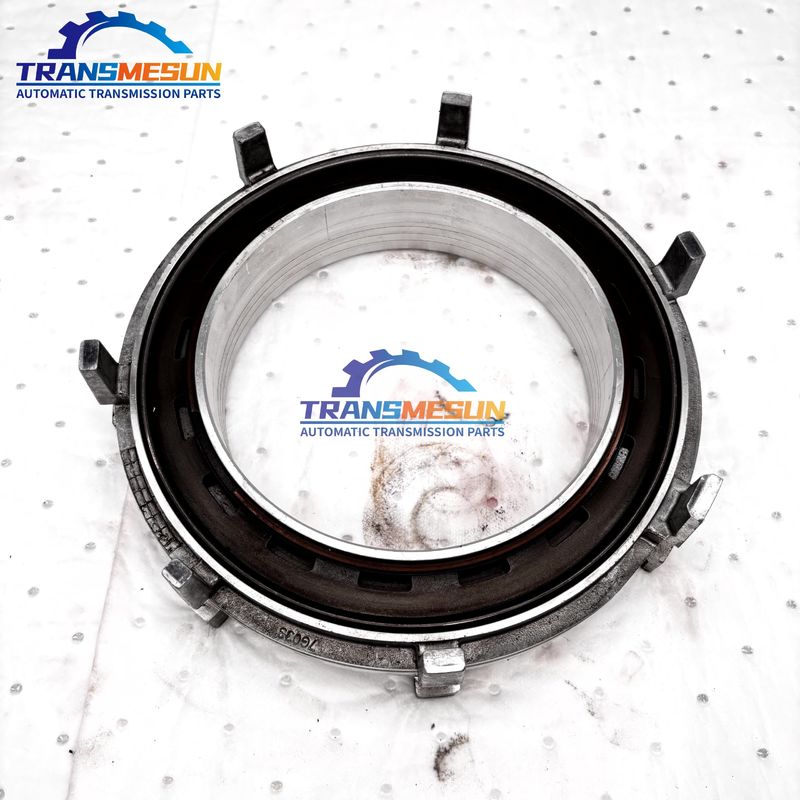

6F35 Cvt Automatic Transmission Center Support Reverse Clutch Assembly For Ford EDGE OE
Product Summary
Typical Faults: Clutch Drum Cracking Symptom: Sudden loss of reverse (P07A3 code) Cause: Fatigue near weld seams from torque shocks One-Way Clutch Roller Jamming Symptom: Harsh 1-2 upshift or reverse bang Trigger: Contaminated fluid or sprag spring failure Thrust Washer Wear Symptom: Axial play >0.3mm (whining in reverse) Root Cause: Improper preload during assembly Critical Checks: Sprag Test: Must lock counterclockwise only Drum Runout:
Basic Properties
Brand Name:
FORD
Model Number:
6F35
Trading Properties
Minimum Order Quantity:
1
Price:
0-1000
Payment Terms:
T/T
Product Description
-
-
-
-
Typical Faults:
-
Clutch Drum Cracking
-
Symptom: Sudden loss of reverse (P07A3 code)
-
Cause: Fatigue near weld seams from torque shocks
-
-
One-Way Clutch Roller Jamming
-
Symptom: Harsh 1-2 upshift or reverse bang
-
Trigger: Contaminated fluid or sprag spring failure
-
-
Thrust Washer Wear
-
Symptom: Axial play >0.3mm (whining in reverse)
-
Root Cause: Improper preload during assembly
-
Critical Checks:
-
Sprag Test: Must lock counterclockwise only
-
Drum Runout: <0.05mm tolerance
-
Washer Thickness: Measure with micrometer
Pro Tip: Replace entire assembly if splines show polishing – indicates planetary gear wear.
-
-
-
-
Product Details
Highlight:
6F35 reverse clutch assembly
,reverse clutch assembly cvt automatic transmission
,6F35 cvt automatic transmission
Year：:
2010-2019
MODEL：:
6F35
SIZE::
25X25X20CM
Brand：:
FORD
Item Weight::
4kg
ＯＥＮＯ:
BL8Z7L328C
Applicable Brand::
2010-2019 Ford Fusion 2013-2019 Ford Taurus 2014-2019 Ford Transit Connect 2015-2019 Lincoln MKC 2013-2019 Lincoln MKT
Mrs. Kinny
Foreign trade Manager
- Email: admin@transmesun.com
- Tel: +8618665691829
- WhatsApp: 8618665691829
-
WeChat:
+8618665691829
