Quality 6T30 Low-speed Reverse Gear One-way Clutch Hub factory

6T30 Low-speed Reverse Gear One-way Clutch Hub

Product Summary

As an automatic transmission expert, I'll analyze the most common failure modes of the 6T30 Low/Reverse One-Way Clutch (OWC) Hub: Top Failure Modes of the 6T30 Low/Reverse OWC Hub: Wear/Galling on Inner Race Contact Surface The hub's inner race (where the rollers/sprags engage) often develops ...

Basic Properties

Brand Name: Cruze Sonic

Model Number: MH9

Trading Properties

Minimum Order Quantity: 1

Price: 0-1000

Payment Terms: T/T

Tags:

transmission torque converter

Automatic Transmission Parts

transmission clutch assembly

Product Description

As an automatic transmission expert, I'll analyze the most common failure modes of the 6T30 Low/Reverse One-Way Clutch (OWC) Hub:

Top Failure Modes of the 6T30 Low/Reverse OWC Hub:

Wear/Galling on Inner Race Contact Surface
- The hub's inner race (where the rollers/sprags engage) often develops excessive wear or scoring due to:
  - Contaminated ATF (lack of maintenance)
  - Hard engagement shocks (aggressive driving)
  - Poor lubrication (clogged passages)
Roller/Sprag Bore Damage
- The hub's bore (holding rollers/sprags) can become ovalized or develop grooves, preventing proper OWC locking.
- Causes: Overloading, misalignment, or poor heat treatment.
Retainer Spring Fatigue/Fracture
- The spring that maintains roller/sprag tension weakens or breaks, causing:
  - Intermittent engagement (delayed reverse)
  - Complete failure (no low/reverse)

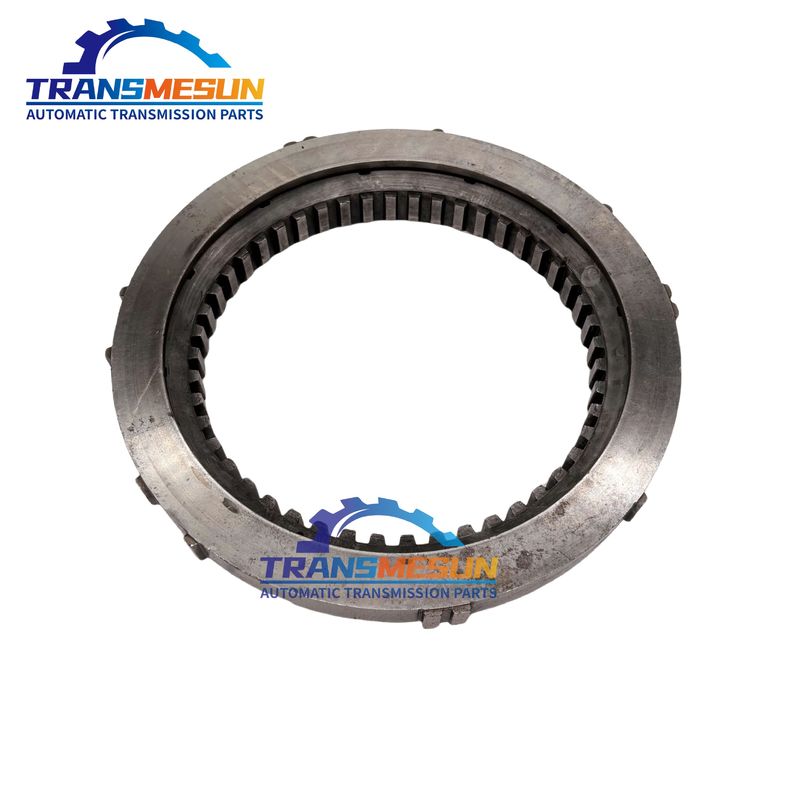

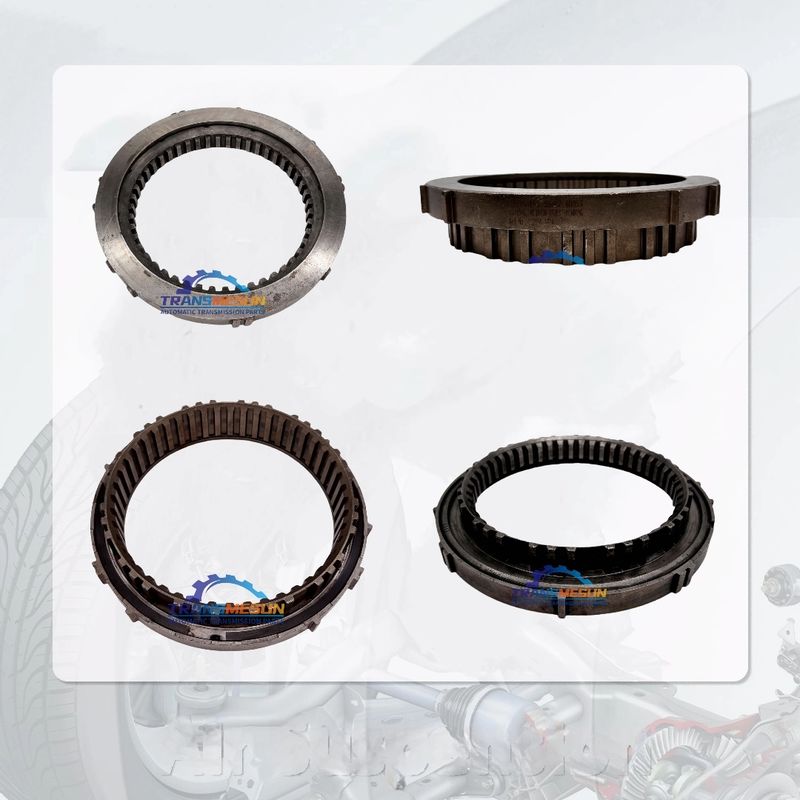

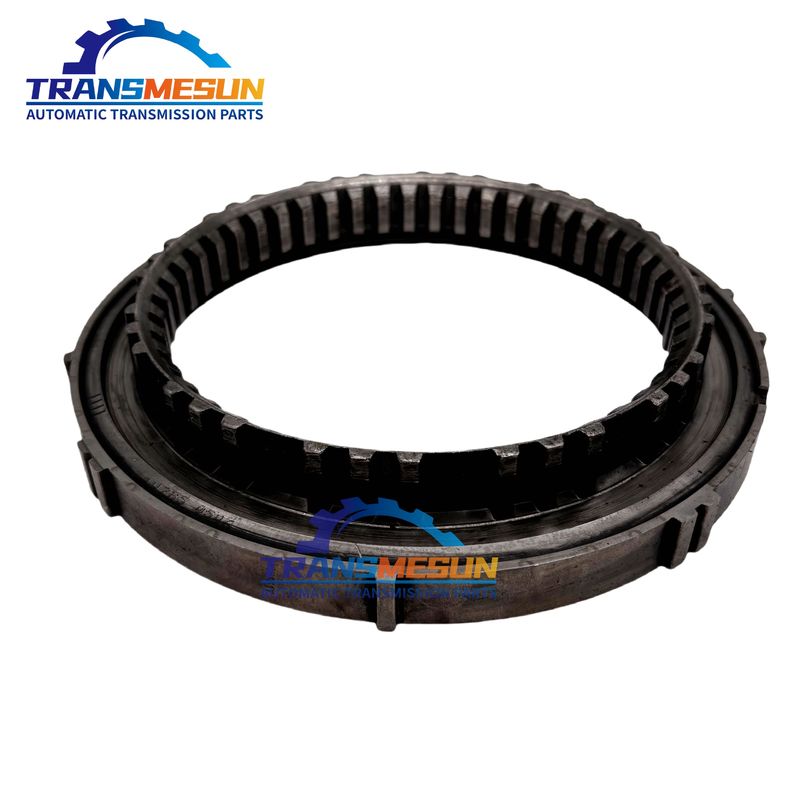

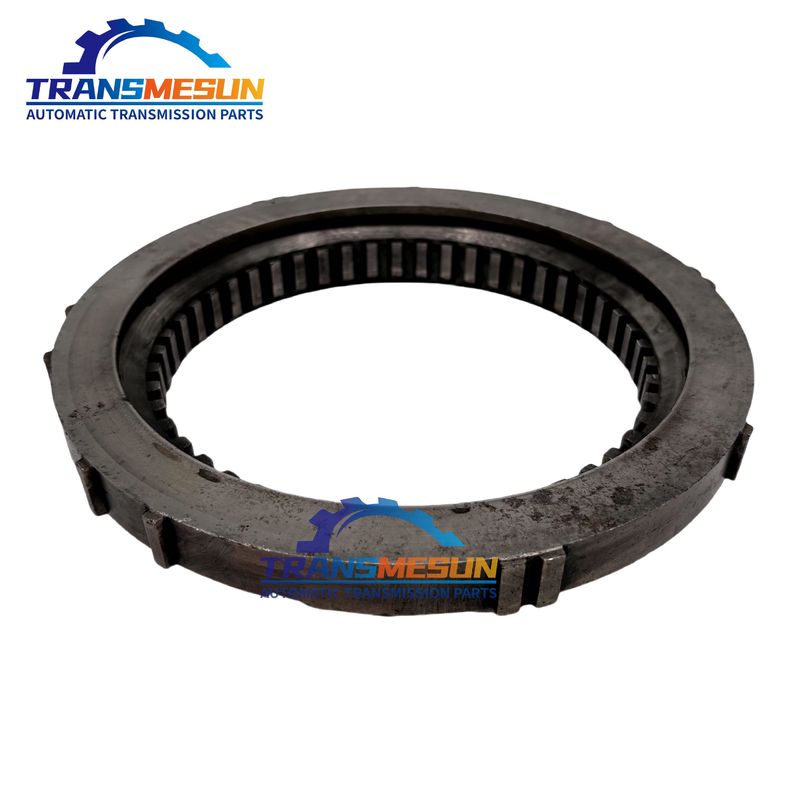

6T30 Low-speed Reverse Gear One-way Clutch Hub 0

6T30 Low-speed Reverse Gear One-way Clutch Hub 1

6T30 Low-speed Reverse Gear One-way Clutch Hub 2
