Quality 6T40 automatic transmission oil pump assembly hub stator factory

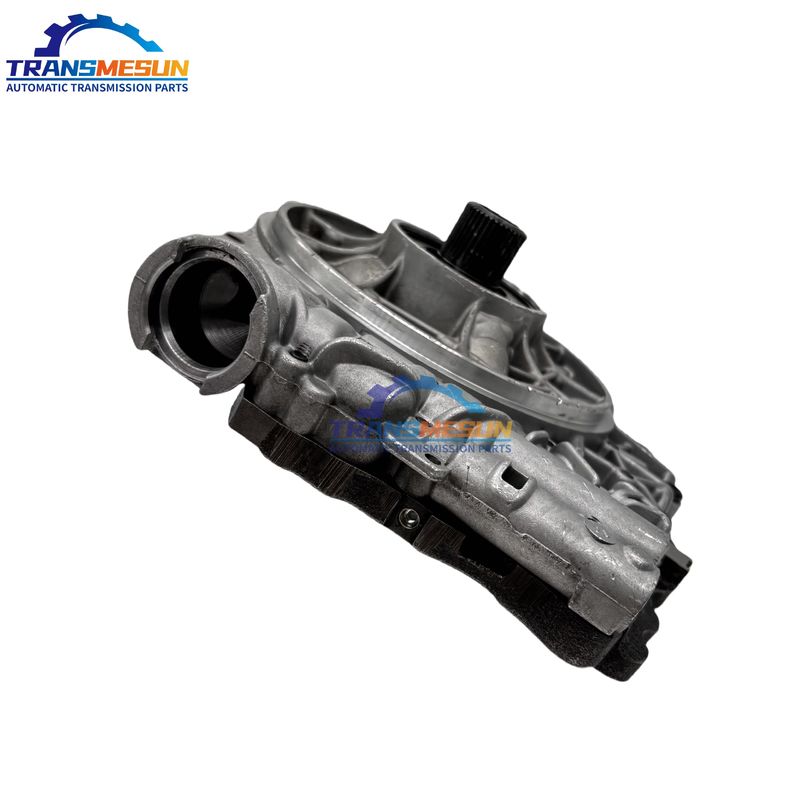

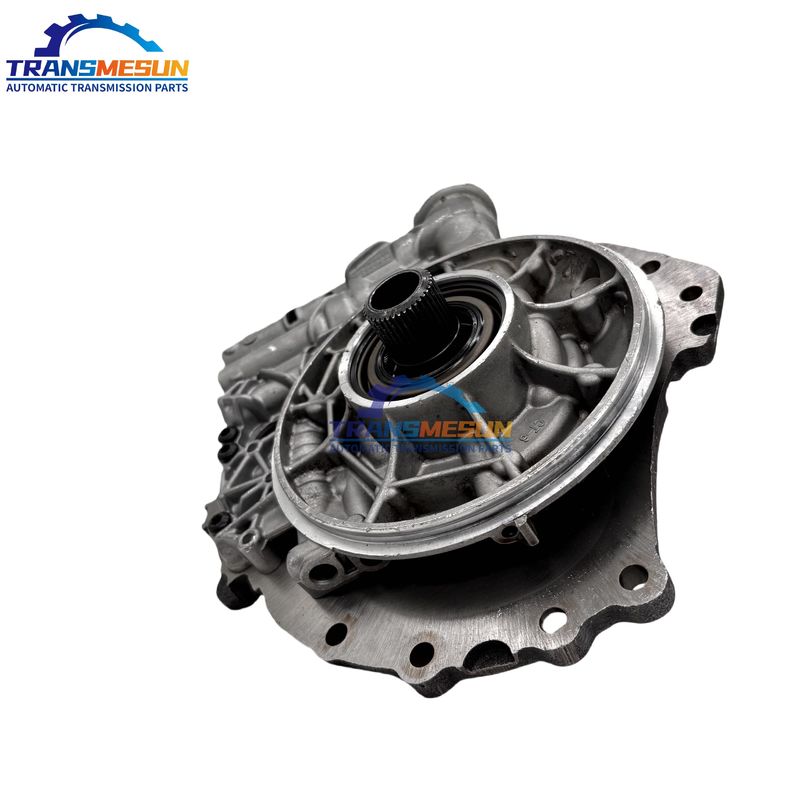

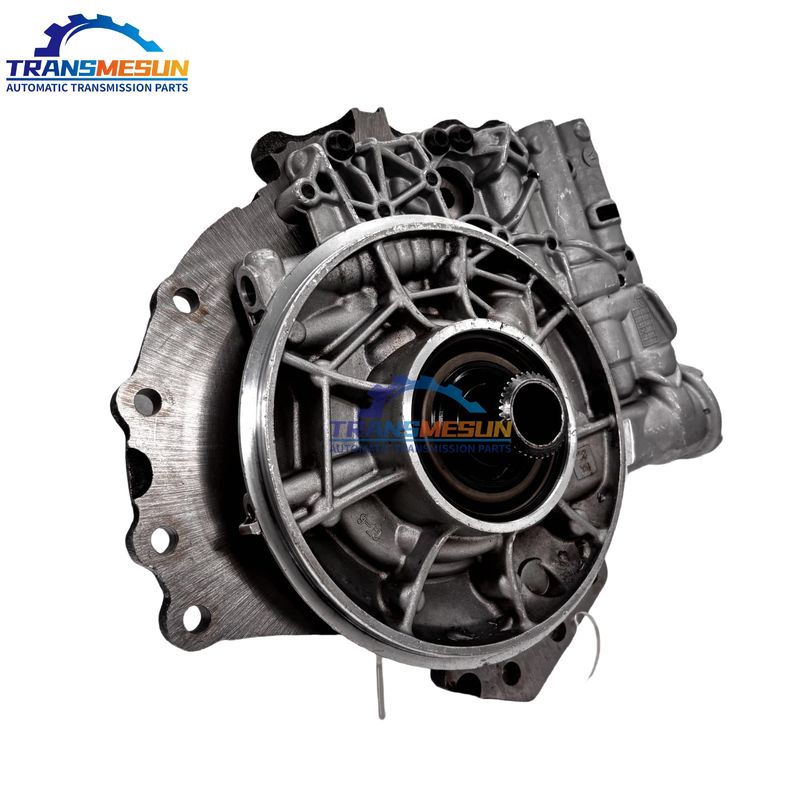

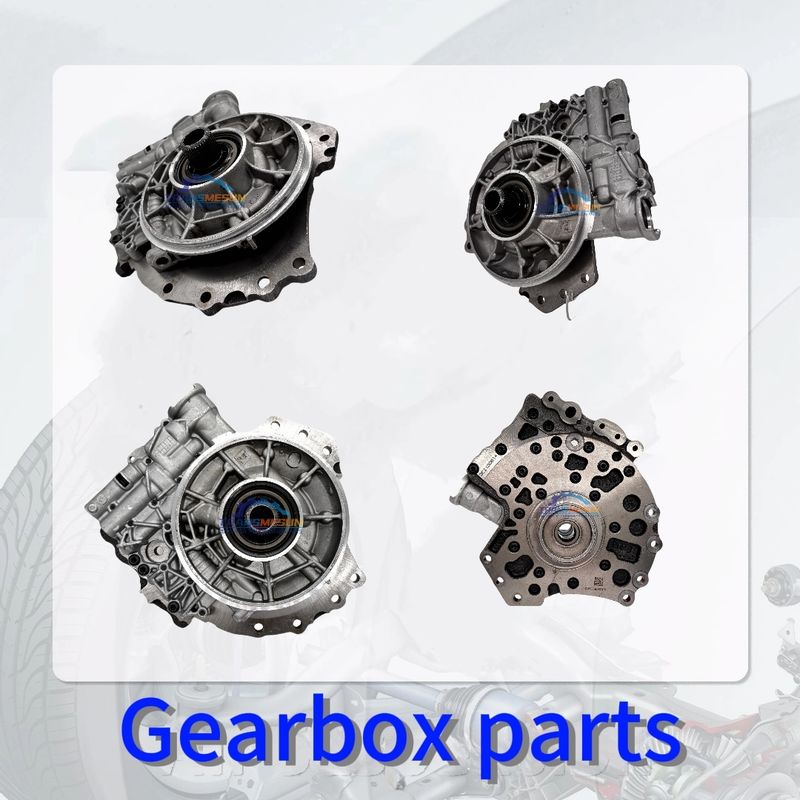

6T40 automatic transmission oil pump assembly hub stator

Product Summary

Top Failure Modes: Stator Shaft Galling/Scoring – Poor lubrication or debris causes wear on the stator support hub, leading to pressure loss. Bushing Wear – The pump bushing wears, causing rotor misalignment and low line pressure. Seal Ring Groove Damage – Worn grooves allow internal leaks, reducing ...

Basic Properties

Brand Name: CRUZE;Epica

Model Number: MH7

Trading Properties

Minimum Order Quantity: 1

Price: 0-1000

Payment Terms: T/T

Tags:

transmission torque converter

Automatic Transmission Parts

transmission clutch assembly

Product Description

Top Failure Modes:

Stator Shaft Galling/Scoring – Poor lubrication or debris causes wear on the stator support hub, leading to pressure loss.
Bushing Wear – The pump bushing wears, causing rotor misalignment and low line pressure.
Seal Ring Groove Damage – Worn grooves allow internal leaks, reducing pump efficiency.
Cracking Near Drive Lugs – Fatigue fractures from high torque loads (common in 6T40s).
Stator Shaft Spline Wear – Slippage or stripping due to excessive torque or misalignment.

Key Symptoms:

Low line pressure (delayed shifts, slippage)
Whining noise (pump cavitation)
Metal debris in fluid (bushing/seal failure)

Fix: Replace the pump assembly (including bushings/seals) and flush the system.

6T40 automatic transmission oil pump assembly hub stator 0

6T40 automatic transmission oil pump assembly hub stator 1

6T40 automatic transmission oil pump assembly hub stator 2

Product Details

Highlight:
