8-speed cvt automatic transmission planetary gear 1087240049

8-speed cvt automatic transmission planetary gear 1087240049

Brand Name:

/

Model Number:

8HP70、8HP70H、8HP70X

Contact Us
Request a Quote

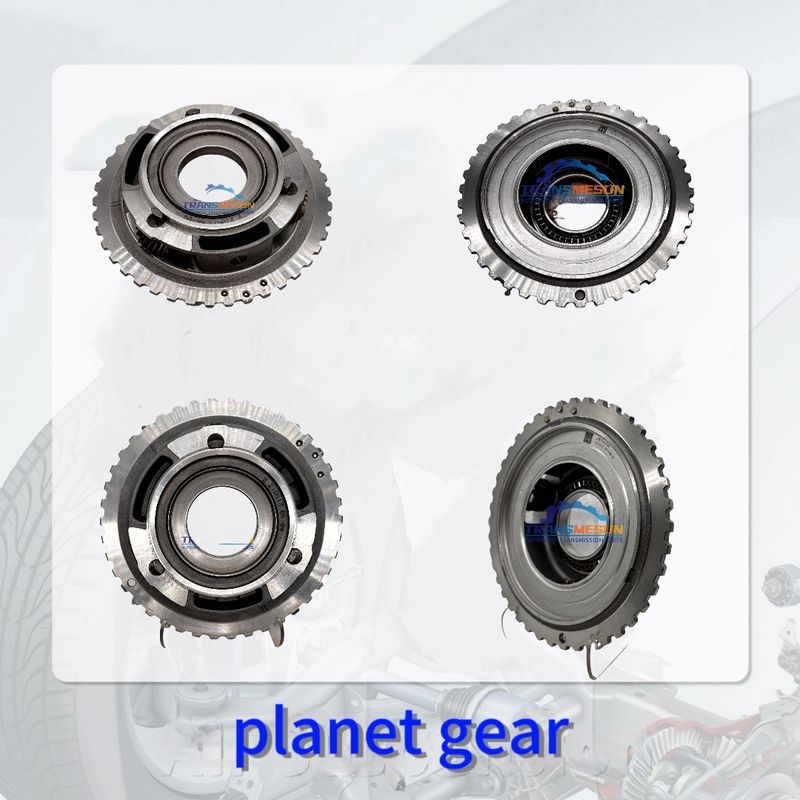

8-speed cvt automatic transmission planetary gear 1087240049
8-speed cvt automatic transmission planetary gear 1087240049 8-speed cvt automatic transmission planetary gear 1087240049 8-speed cvt automatic transmission planetary gear 1087240049 8-speed cvt automatic transmission planetary gear 1087240049
Product Details
Year：:
/
MODEL：:
8HP70、8HP70H、8HP70X
SIZE::
15X15X15CM
Brand：:
/
Item Weight::
2kg
ＯＥＮＯ:
1087240049
Applicable Brand::
/
Payment & Shipping Terms
Minimum Order Quantity
1
Price
0-1000
Packaging Details
Paper box or wooden box
Delivery Time
5-8 work day
Payment Terms
T/T
Related Products
good price Audi E type clutch hub assembly ZF 8HP55A 38 spline and matching gears online video

Audi E type clutch hub assembly ZF 8HP55A 38 spline and matching gears

Get Best Price
good price Suitable for Audi clutch hub assembly - Audi ZF 8HP55A six-piece castings online video

Suitable for Audi clutch hub assembly - Audi ZF 8HP55A six-piece castings

Get Best Price
good price 0CQ Rear Final Drive Assembly Premium OEM Replacement for VW Golf BQ1 2.0T Compatible Models online video

0CQ Rear Final Drive Assembly Premium OEM Replacement for VW Golf BQ1 2.0T Compatible Models

Get Best Price
good price 6T30 Low/Reverse One-Way Clutch Hub – Premium OEM Replacement for 2013 Chevrolet Cruze/Sonic 1.8L online video

6T30 Low/Reverse One-Way Clutch Hub – Premium OEM Replacement for 2013 Chevrolet Cruze/Sonic 1.8L

Get Best Price
Contact Us
+8618665691829
admin@transmesun.com
86--18665691829
Contact Now
Product Description

Key Features & Analysis:

  1. Application: ZF 8HP series (likely 8HP45/55/70), supporting 2nd/4th/6th/8th gear ratios.

  2. Design: Compound planetary set (Ravigneaux or Lepelletier type) with hardened 18–22 tooth sun gear and 42–46 tooth ring gear.

  3. Material: Case-hardened 20MnCr5 steel (core hardness 58–62 HRC, surface >800 HV).

  4. Critical Tolerances:

    • Backlash: 0.05–0.12mm (exceeding 0.15mm causes whine)

    • Runout limit: <0.03mm

  5. Failure Modes:

    • Pitting/spalling (fatigue due to high torque cycling)

    • Bearing journal wear (if oil debris present)

    • Thermal distortion (if ATF exceeds 140°C)

Note: Requires ZF Lifeguard 8 fluid for proper lubrication. Common in Audi/BMW applications.

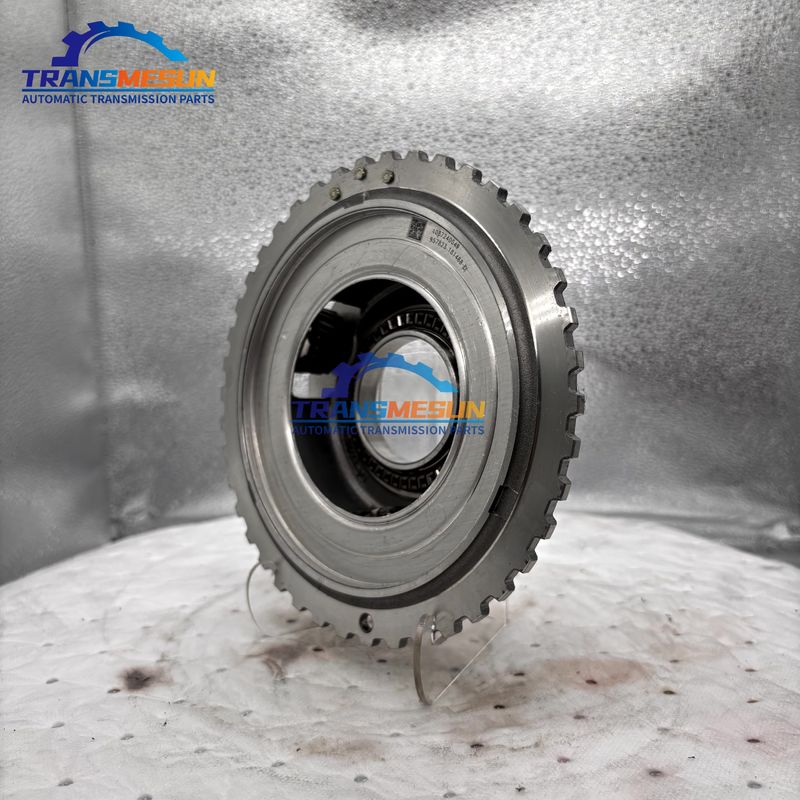

8-speed cvt automatic transmission planetary gear 1087240049 0

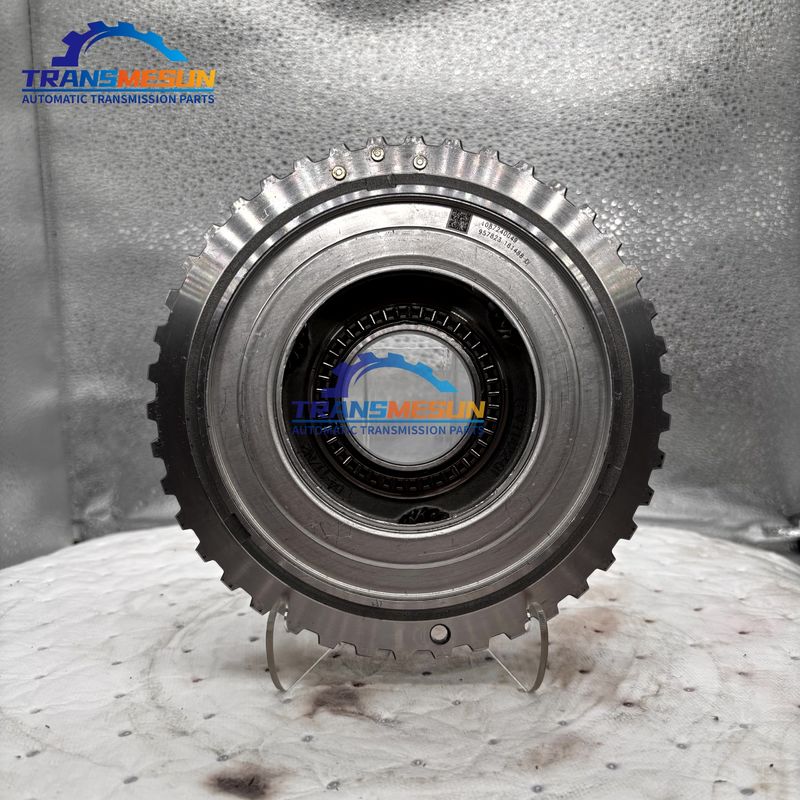

8-speed cvt automatic transmission planetary gear 1087240049 1

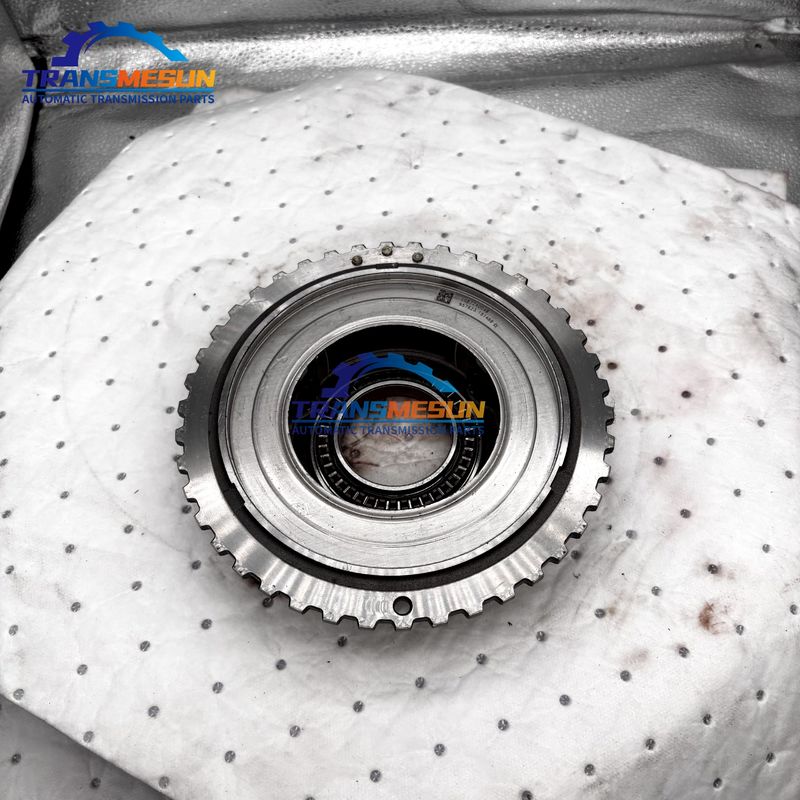

8-speed cvt automatic transmission planetary gear 1087240049 2



Tags：

transmission torque converter

Automatic Transmission Parts

transmission clutch assembly
