09G TF-60SN CVT automatic transmission K1 drum clutch assembly

09G TF-60SN CVT automatic transmission K1 drum clutch assembly

Brand Name:

Volkswagen Passat

Model Number:

09M; TF-60SN

Contact Us
Request a Quote

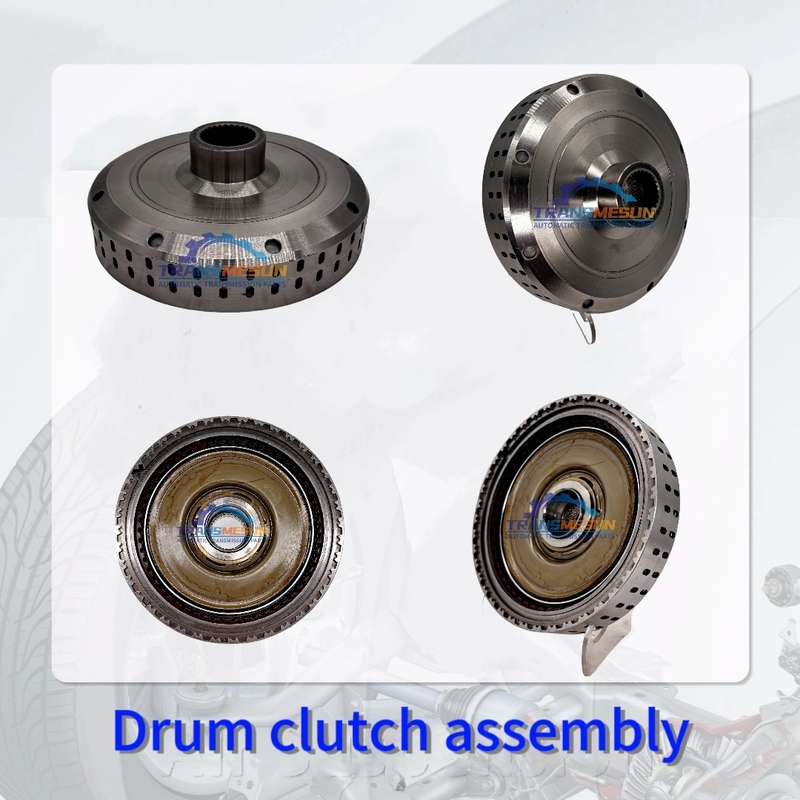

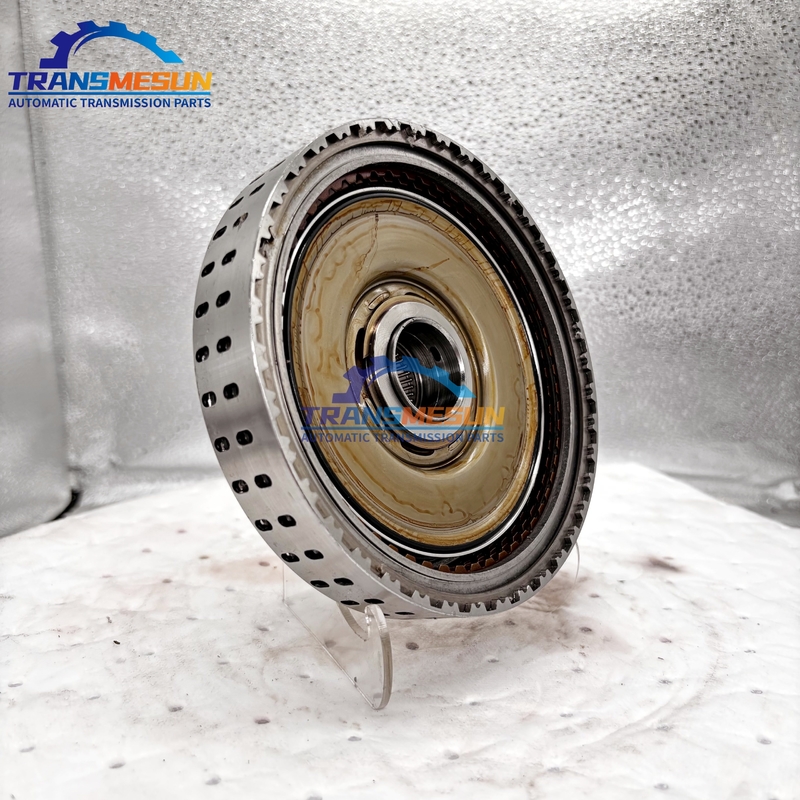

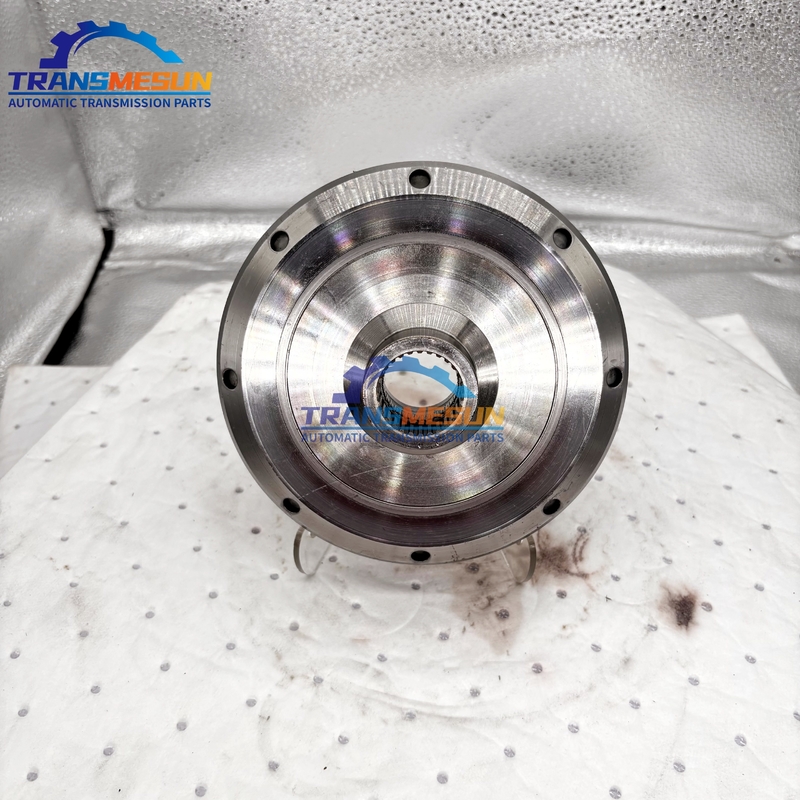

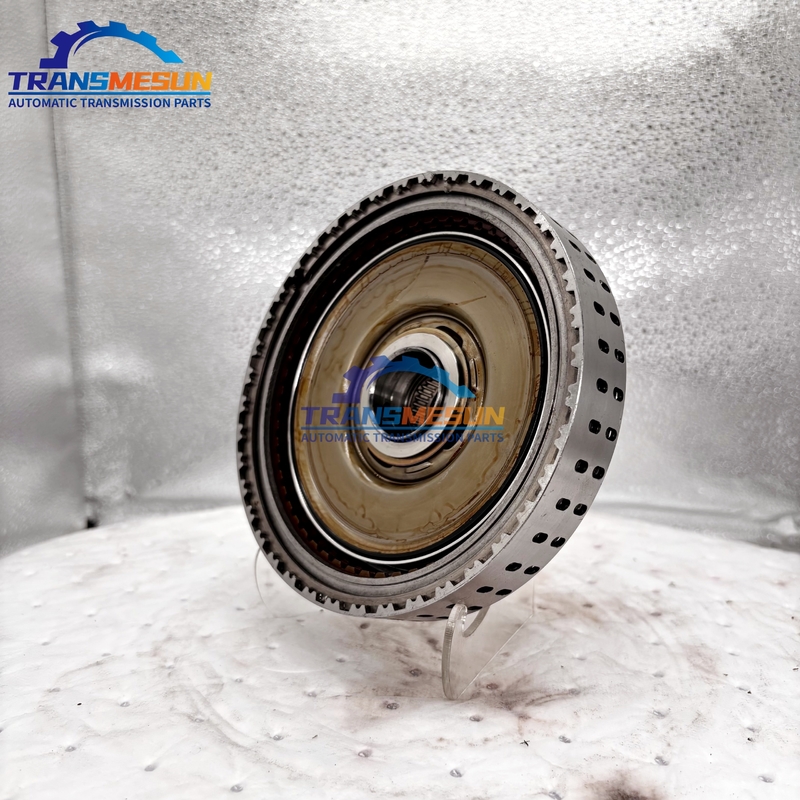

09G TF-60SN CVT automatic transmission K1 drum clutch assembly
09G TF-60SN CVT automatic transmission K1 drum clutch assembly 09G TF-60SN CVT automatic transmission K1 drum clutch assembly 09G TF-60SN CVT automatic transmission K1 drum clutch assembly 09G TF-60SN CVT automatic transmission K1 drum clutch assembly
Product Details
Year：:
2007-
MODEL：:
09M; TF-60SN
SIZE::
15X15X15CM
Brand：:
Volkswagen Passat
Item Weight::
2.5kg
ＯＥＮＯ:
09G TF-60SN
Applicable Brand::
Shuttle; Golf; CC. Skoda: Horiseon; Miro; Speedo. Mini: Mini
Payment & Shipping Terms
Minimum Order Quantity
1
Price
0-1000
Packaging Details
Paper box or wooden box
Delivery Time
5-8 work day
Payment Terms
T/T
Related Products
good price AWTF60SN transmission 4-5-6 K2 clutch drum 4 clutches 15 spline shaft clutch assembly online video

AWTF60SN transmission 4-5-6 K2 clutch drum 4 clutches 15 spline shaft clutch assembly

Get Best Price
good price 09G TF-60SN CVT automatic transmission K1 drum clutch assembly online video

09G TF-60SN CVT automatic transmission K1 drum clutch assembly

Get Best Price
good price 8-speed cvt automatic transmission planetary gear 1087240049 online video

8-speed cvt automatic transmission planetary gear 1087240049

Get Best Price
good price Audi E type clutch hub assembly ZF 8HP55A 38 spline and matching gears online video

Audi E type clutch hub assembly ZF 8HP55A 38 spline and matching gears

Get Best Price
Contact Us
+8618665691829
admin@transmesun.com
86--18665691829
Contact Now
Product Description

Key Specifications & Analysis

  1. Function: 1st/3rd/5th gear engagement in VW/Audi transverse 6-speed applications.

  2. Design:

    • 3-piston clutch pack (5 friction plates, 6 steel plates)

    • Drum material: Hardened aluminum (Si-Cu alloy) with anti-wear coating

  3. Critical Tolerances:

    • Plate clearance: 1.2–1.6mm (new), >2.0mm requires replacement

    • Piston stroke: 2.8–3.2mm

  4. Failure Modes:

    • Seal leaks (causing delayed engagement)

    • Drum spline wear (>0.2mm play leads to shudder)

    • Overheating (if ATF degraded, causing plate glazing)

Note: Uses VW G 055 025 A2 fluid; common failure in high-mileage units.
