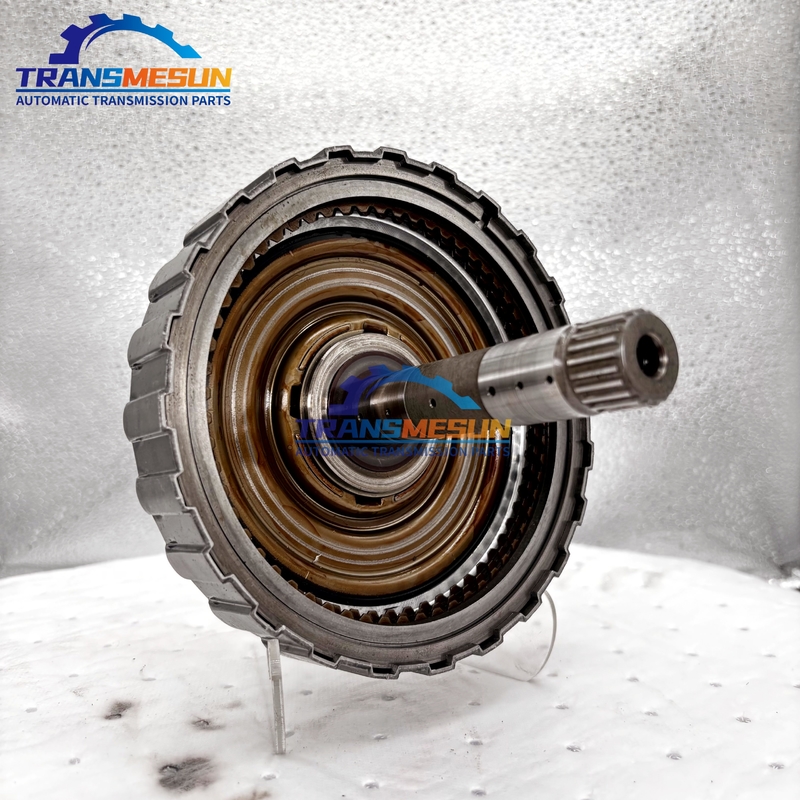

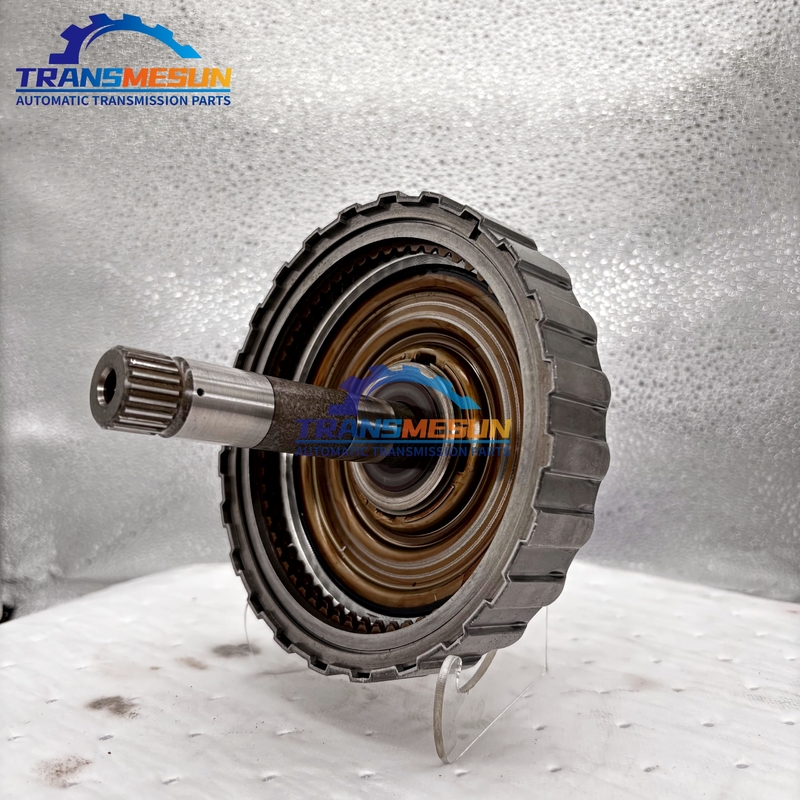

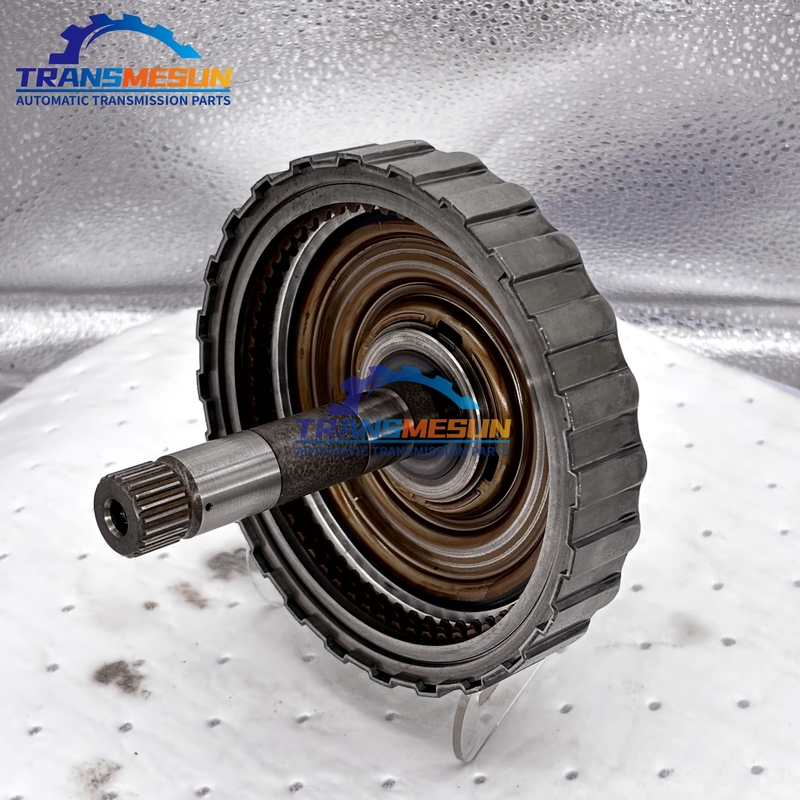

AWTF60SN transmission 4-5-6 K2 clutch drum 4 clutches 15 spline shaft clutch assembly

Product Summary
Application: ZF 6HP/8HP or similar, handling 4th-6th gear shifts under high torque (500–700Nm). Design: 15-spline hardened steel shaft (SAE 4140, 60–64 HRC) for direct hub engagement. 4-clutch pack (3 friction + 4 steel plates, 0.5–0.7mm clearance new). Critical Specs: Drum OD: 120–125mm, anodized for thermal resistance (max 200°C). Spline tolerance: ±0.03mm (wear >0.1mm causes slippage). Failure Modes: Spline shear (fatigue under abrupt shifts). Drum warping (overheat cycles
Basic Properties
Brand Name: Volkswagen Passat
Model Number: AWTF60SN
Trading Properties
Minimum Order Quantity: 1
Price: 0-1000
Payment Terms: T/T
Tags:

transmission torque converter

Automatic Transmission Parts

transmission clutch assembly
Product Description

  1. Application: ZF 6HP/8HP or similar, handling 4th-6th gear shifts under high torque (500–700Nm).

  2. Design:

    • 15-spline hardened steel shaft (SAE 4140, 60–64 HRC) for direct hub engagement.

    • 4-clutch pack (3 friction + 4 steel plates, 0.5–0.7mm clearance new).

  3. Critical Specs:

    • Drum OD: 120–125mm, anodized for thermal resistance (max 200°C).

    • Spline tolerance: ±0.03mm (wear >0.1mm causes slippage).

  4. Failure Modes:

    • Spline shear (fatigue under abrupt shifts).

    • Drum warping (overheat cycles).

    • Seal blowout (pressure loss in boost phase).

Note: Requires low-viscosity ATF (e.g., ZF LG8) for optimal clutch modulation.


AWTF60SN transmission 4-5-6 K2 clutch drum 4 clutches 15 spline shaft clutch assembly 0

AWTF60SN transmission 4-5-6 K2 clutch drum 4 clutches 15 spline shaft clutch assembly 1

AWTF60SN transmission 4-5-6 K2 clutch drum 4 clutches 15 spline shaft clutch assembly 2



Product Details
Highlight:

4-5-6 K2 transmission clutch drum

,

15 spline shaft clutch assembly

,

4 clutches transmission parts
Year：: 2007-
MODEL：: AWTF60SN
SIZE:: 15X15X15CM
Brand：: Volkswagen Passat
Item Weight:: 2.5kg
ＯＥＮＯ: 09G 09M 09K AWTF60SN
Applicable Brand:: Shuttle; Golf; CC. Skoda: Horiseon; Miro; Speedo. Mini: Mini

Mrs. Kinny

Foreign trade Manager
