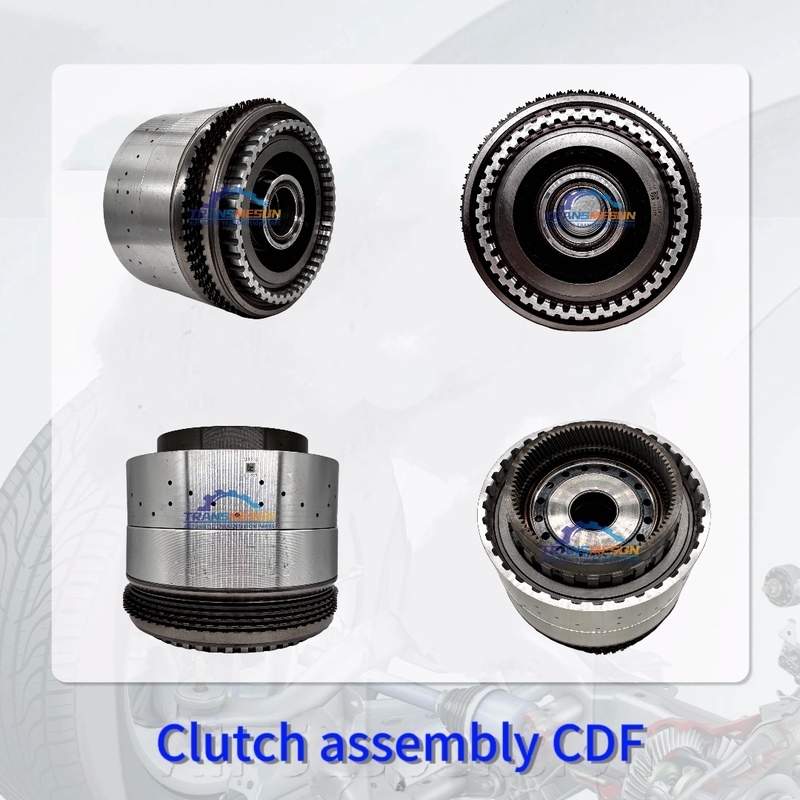

10R60 10-speed CVT automatic transmission clutch assembly CDF three-drug hub assembly

Product Summary
Application: Ford/GM 10R60/80 RWD applications, managing direct/overdrive gear transitions under 800+ Nm torque. Design: Nested tri-drum assembly (K1/K2/K3 clutches) with laser-welded seams 6-pinion planetary gearset integration 10-layer clutch packs (5 friction + 5 steel plates per drum) Critical Specs: Drum material: Micro-alloyed steel (55-58 HRC) Spline tolerance: 0.01-0.04mm (direct clutch hub) Cooling jets: 4x 0.8mm nozzles per drum Failure Modes: Drum distortion
Basic Properties
Brand Name: Ford
Model Number: 10R60
Trading Properties
Minimum Order Quantity: 1
Price: 0-1000
Payment Terms: T/T
Tags:

transmission torque converter

Automatic Transmission Parts

transmission clutch assembly
Product Description

Application: Ford/GM 10R60/80 RWD applications, managing direct/overdrive gear transitions under 800+ Nm torque.

      1. Design:

        • Nested tri-drum assembly (K1/K2/K3 clutches) with laser-welded seams

        • 6-pinion planetary gearset integration

        • 10-layer clutch packs (5 friction + 5 steel plates per drum)

      2. Critical Specs:

        • Drum material: Micro-alloyed steel (55-58 HRC)

        • Spline tolerance: 0.01-0.04mm (direct clutch hub)

        • Cooling jets: 4x 0.8mm nozzles per drum

      3. Failure Modes:

        • Drum distortion (thermal cycling >230°C)

        • Needle bearing spalling (misalignment)

        • Clutch plate glazing (fluid degradation)

      Note: Requires Mercon ULV fluid; post-2020 models feature reinforced stator shafts.

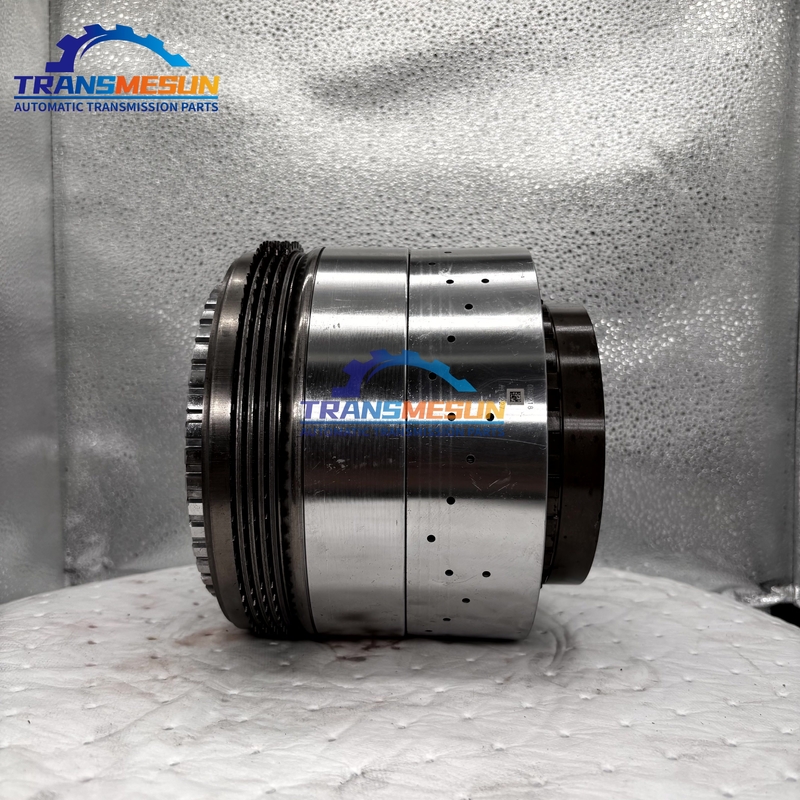

10R60 10-speed CVT automatic transmission clutch assembly CDF three-drug hub assembly 0

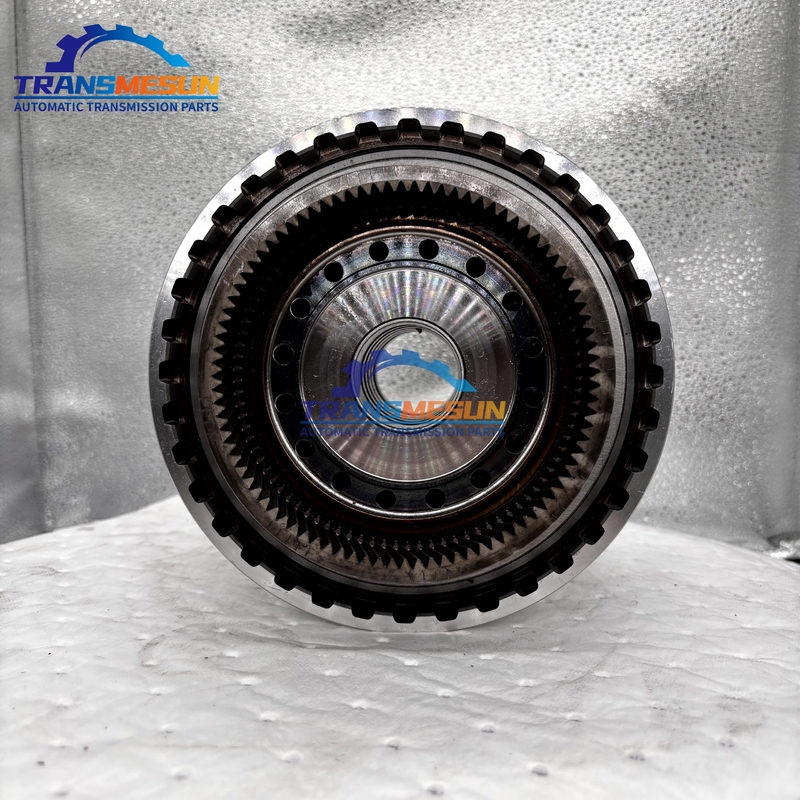

10R60 10-speed CVT automatic transmission clutch assembly CDF three-drug hub assembly 1

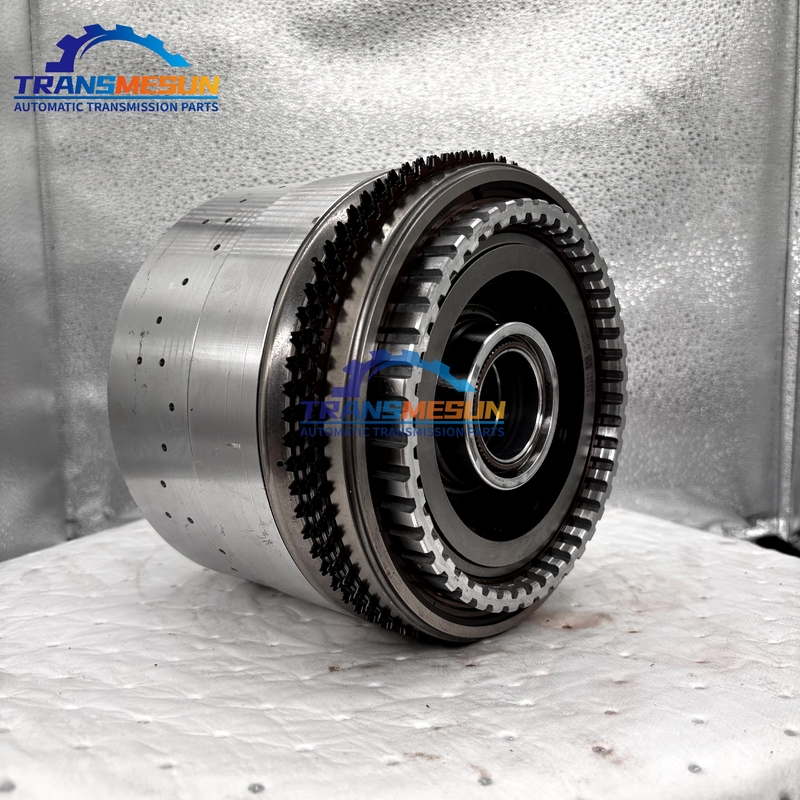

10R60 10-speed CVT automatic transmission clutch assembly CDF three-drug hub assembly 2



Product Details
Highlight:

10R60 CVT transmission clutch assembly

,

10-speed automatic transmission hub

,

CDF three-drug clutch assembly
Year：: 2020-2026
MODEL：: 10R60
SIZE:: 35X25X25CM
Brand：: Ford
Item Weight:: 7kg
ＯＥＮＯ: L1MZ7H351B
Applicable Brand:: Ford Bronco Explorer Explorer Sport
